Industrial Waterproof Cable Connector IP67 Sealed F Branch 2 Ways Screw Locking Style
F Branch 2 Ways IP67 Waterproof Connector Sealed With Cable Industrial Connector
More details of 2 Pin F Shape IP67 Waterproof Connector:
1.The current/voltage rating of IP67 waterproof connector are 10A/300V.
2. multi-pins(2-5 pins) for varies industrial demands
3. PVC shell ensure fire safety,stable, compression, anti-explosion and anti-deformation
4. Our waterproof connector have protection level: IP68.
5. Screw locking style,easy to assemble.
6. Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
7. gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
The specifiction of 10A waterproof circular connector
| Connecting mode | screw Locking |
| Protection level | IP67 |
| Cable specification | 0.5mm² ~ 1.5mm² /20~16AWG |
| Diameter range | MaxΦ9mm |
| Contact diameter×Qty | Φ1.5×2 |
| Current rating(A) | 10A |
| Operating voltage(AC.V.rms) | 300V |
| Withstand voltage(AC.V)1min | 1500V |
| Temperature rating | -40°C~105°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
Product Material
Shell&insulated parts: High performance engineering plastics
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel
Application:
M15 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection, landscape lights,underwater lights,equipments etc.
It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

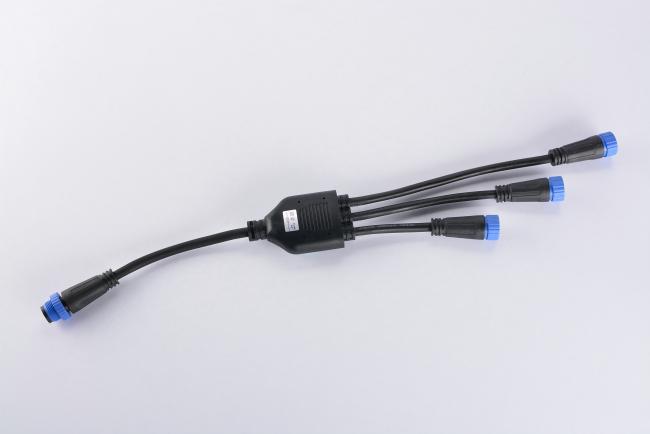

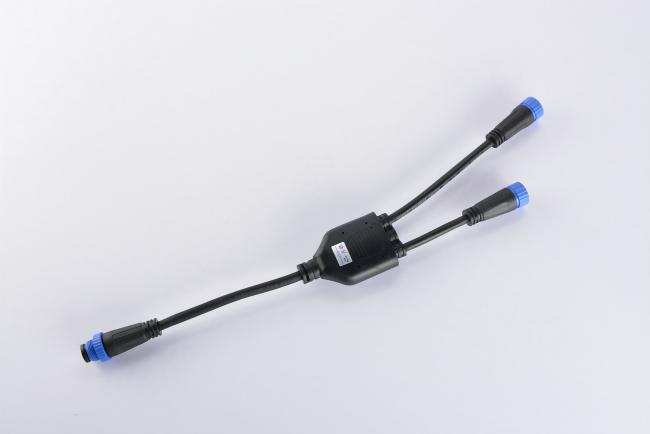

Product detail picture
