Molding Cable 12V Male And Female Connectors Nylon Shell For Outdoor Light
Molding Cable 12V Waterproof Male Female Connector Nylon Shell For Outdoor Light
Product Features
1. IP67 waterproof rating for outdoor using
2. Quick-connect Self Locking design for convenient and easy DIY
3. Panel mount socket & Butt joint available
4. Accepted Max. Cable OD: 11 mm
5. We could help to attach cable in any length and process terminals if required
6. UL, TUV, CCC, CE, RoHS approved
Widely Used Waterproof Male Female Connector:
Great suitable for Outdoor LED light, LED Display, LED Street Lamp lighting, Stage lighting, LED equipment, Communication Equipment, Power, Automotive, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof joint use.
Product Parameter
| Curret Rating | 0-10A |
| Voltage rating | 0-300V AC |
| Times of plug/unplug | Above 500 times |
| Cable OD Rating | OD≤11.0mm |
| Material | ROHS Environmental protection material |
| Cable Type | PVC, PU, Rubber, Silicon |
| Shell material | Flame-resistant /anti-UV nylon (PA66)RL94V-0 |
| Compression connection type pin hole | Brass |
| Seal-O-Ring | Silicon |

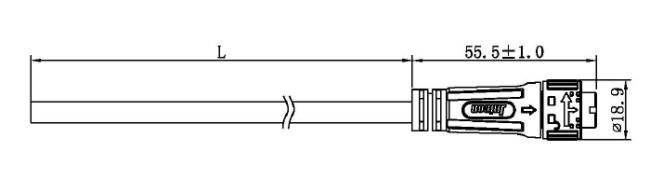

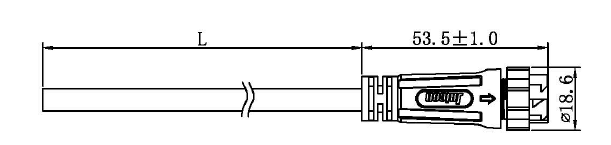

Product Dimention
