Right Angle Watertight Power Connectors 20AWG - 12AWG Cable With Male Female Plug

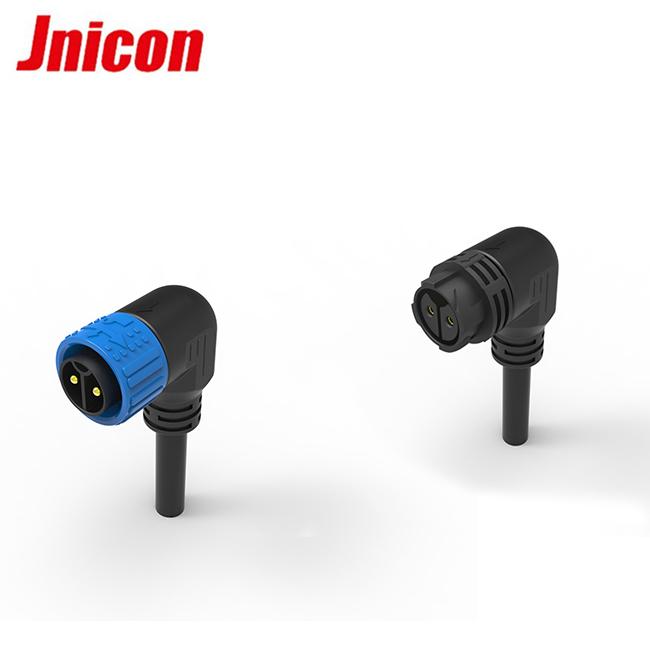

2pin 90 Degree Waterproof Power Connector With Male Female Plug IP67
Product description:
2 pin waterproof right angle connector could be well used for some applications which only has limited space or special position, such as control box, PCB mount, battery charger, industrial equipment installation.
1. Multicore are optional, such as 2 pin,3pin...and more.
2. Overmolded right angle connector
3. Connector type: cable to cable
4. Certification: UL, TUV, RoHs, CQC,CE
5. Max current: 20A/300V
6. IP67 protection level
Basic information :
| Connecting mode: | Push pull locking waterproof connector |
| Connector shape: | Right angle connector (90degree) |

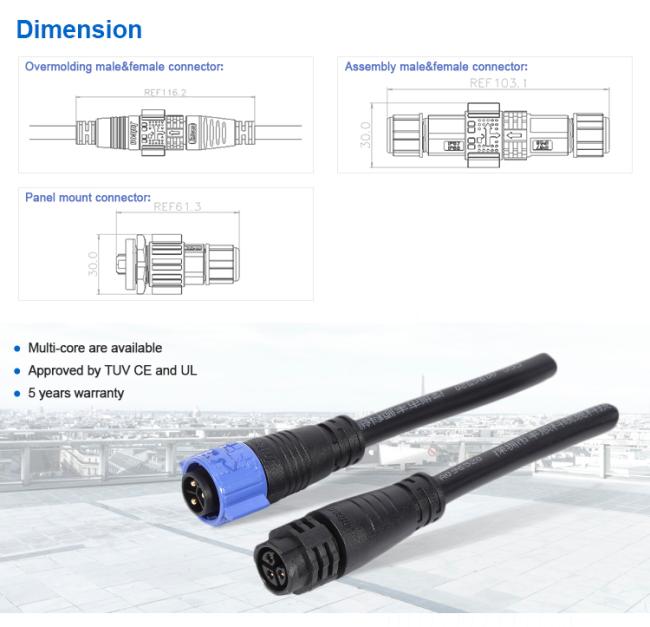

| Connector type : | Assembly /Panel mount/overmolded connector |
| Connector color: | Black, blue, yellow |
| Waterproof level: | IP67 |
Technical Data:
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-12mm |
| Contact diameter*No. | Φ1.0-Φ2.4 |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
Great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
Application industries:
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery | Automation |
| Solar energy equipment | Ship equipment | Agriculture |
| Electric power equipment | Vehicle equipment | Ebike/motorcycle |
