M19 Waterproof Electrical Connectors Outdoor Lighting Panel Mount IP67
M19 Series IP67 Outdoor Waterproof Connectors Blue Plastic Outdoor Led Lighting
Product Features
1. Panel mount socket & Butt joint available
2. Soldering & Screw type terminals available
3. Accepted Max. Cable OD: 11 mm
4. Field installable, soldering or screw connection, crimpping connection available
5. We could help to attach cable in any length and process terminals if required
6. UL, TUV, CCC, CE, RoHS approved
Our Services
* Field installable, soldering or screw connection
* UL, TUV, CQC, CE, RoHS approved
* High quality with 12 months waranty
* We could help to attach cable in any length and process terminals if required
* Customer's drawings and designs are welcome, as we have our own professional R&D team to provide
you various solutions
Product Parameter
| Curret Rating: | 0-20A |
| Voltage rating: | 0-240V AC |
| Times of plug/unplug | Above 500 times |
| Cable OD Rating | OD≤11.0mm |
| Material | ROHS Environmental protection material |
| Cable Type | PVC, PU, Rubber, Silicon |
| Shell material | Flame-resistant /anti-UV nylon (PA66)RL94V-0 |
| Compression connection type pin hole | Brass |
| Seal-O-Ring | Silicon |
| Porperty: | |
| Contact resistance | <10 mΩ |
| Eelectric resistance | 500 MΩ at DC500V |
| Standing voltage | 3KV Under normal temperature |
| Operating temperature | -40°C~ +105°C |
| Waterproof Rating | IP 67 |
Easy installation M19 cable connector wiring:
Easy connection, Convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
Good quality exterior cable plug:
With environmental protection material:high performance engineer plastic is good for environmental protection, please feel free to use the outdoor junction box.
Long service life exterior connector :
UV resistance makes it anti-aging,3 or 5 years life time when used in normal environment(but don't immerse waterproof electrical connectors in the the water for long time )

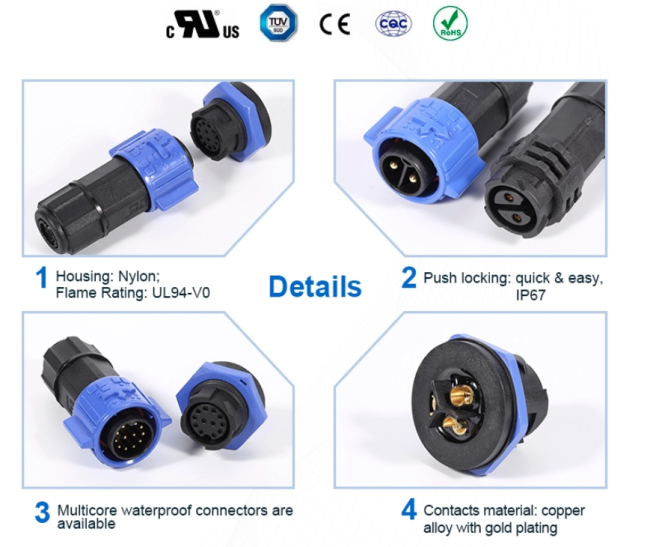

Product Details
