Jnicon Waterproof Male Female Connector , 3 Pin Push Lock Electrical Connectors
Jnicon IP67 Waterproof Male Female Connector 3 Pin Push Lock Type Wire Connector
Product Description
* IP67 rating
* Current rating: 20A
* Voltage rating: 250V
* Cable Range: 6~11mm
* Accepted Max. Cable OD: 11 mm
* Field installable, soldering or screw connection
* UL, TUV, SAA, CCC, CE, RoHS approved
* High quality with 12 months waranty
* Pin range: 2-22pin
Product Features
1. Four-point spiral locking with military standard.
2. Optional shell color to meet different environmental requirements.
3. 2-5PIN power supply, 6-22PIN signal is optional.
4. Rated current: 5A/12A/20A rms.
5. The IP67 protection level is met when the product is connected.
Product Parameter
|
Material: |
|
|
Shell &insulated parts: |
High performance engineering plastics |
|
Hardware metal: |
Zinc alloy(pearl hard chromium) |
|
Contact pin: |
Copper alloy(gold-plated) |
|
Spring: |
Stainless steel |
|
Sealing: |
Silica gel |
|
Main characteristics: |
|
|
- Vibration resistance,impact resistance,stretching resistance |
|
|
- plug/ unplug for more than 500 times |
|
|
Application industries: |
|
|
- LED screen |
-Audio-visual equipment |
|
- Stage equipment |
- Street lamp lighting |
|
- Medical equipment |
- Server |
|
- Solar energy equipment |
- Ship equipment |
|
- Electric power equipment |
- Vehicle equipment |
|
- Communications equipment |
- Heavy machinery
|
Our Services
1. Packaging: Package will do after several discussions with you.
2. The products are directly from our factory. So it saves a lot secondary cost.
3. Good quality: The MP only will start after you confirm the samples and the MP products will do 100% inspection before shipping.
4. OEM accepted: Please send us your design and other important information. OEM are always welcome.

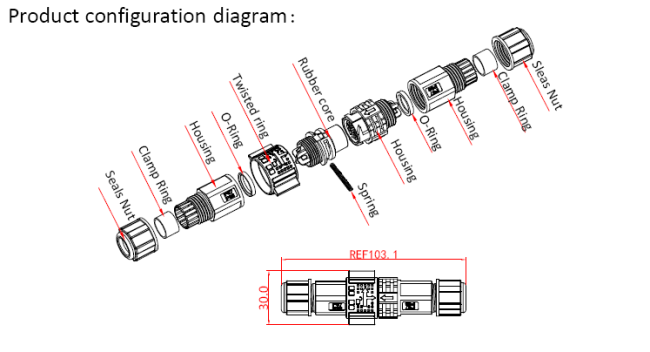

Product Dimention
