Jnicon 2 Pin Screw Locking Waterproof Outdoor Connector Outdoor Connector IP68

main features of 2 Pin Screw Locking Waterproof Outdoor Connector:

• current rating is 10A, and the voltage is 300V.
•​ Operate temperature: -45°C~+85°C
• The waterproof rating is IP68(screw locking).
• the current/ voltage of waterproof data connector are 10A/300V. the withstanding voltage is 1500V AC.
• High current application safety and stable wire. 24-16 AWG wire for 3 pin waterproof outdoor connector .
• 2-5 pins are available and for varies industrial demands.
• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Plug/unplug locking style and push locking,easy to assemble.

The specifiction of Outdoor underground IP68 waterproof LED connector



More detail:

• Vibration resistance,impact resistance,stretching resistance
• The connector widely used in LED lighting, LED streetlamp etc, have high waterproof degree--IP68.
• OEM/ODM are accepted .
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.

Application

M15 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,
landscape lights,underwater lights,equipments etc.

Outdoor waterproof connector have IP68 waterproof protection rating, it works reliably in door, outdoor and underwater.

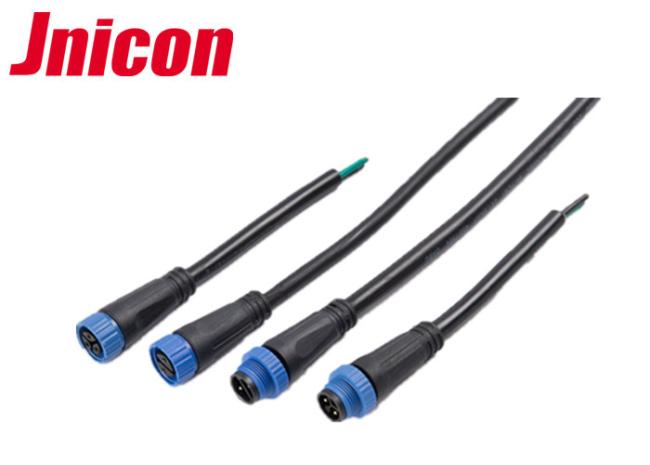

Product detail picture
