IP65 Gray Female Waterproof LED Connectors , PowerCon Waterproof Aviation Connector
IP65 Gray Female Waterproof LED Connectors , Powercon 20A Aviation Connector
Characterization of IP65 Gray Female Powercon
Gray IP65 powercon plug connector wildly use in led screen , especially in outdoor led screen due to its protection level - IP46 , not only waterproof but also dust-proof . Of coures you can use the IP65 powercon indoor , it 's double proteciton , but protection IP44 is ok . Just choose the suitable one according to your application envrionment , also the quantity of demand . Any other questiongs , you can contact me for more directly .
Generally , for the protection level , there are 2 level : IP44 & IP65 . The former is for indoor led screen , the later is for outdoor led screen . For color of powercon , blue and gray are wildly used , but yellow , black , yellow and black is optional .
Specification as below :
| Basic Information | ||
| Designation : | Gray IP65 Powercon Socket | |
| Model No. : | 55-210351-02 | |
| Item | Specification | |
| 1. Electrical characteristics | ||
| 1A Contact Resistance | 3mΩ max. | |
| 1B Insulation Resistance | 10MΩ min. | |
| 1C Withstand Voltage | 2000V AC There shall be no breakdown. | |
| 1D Rating | DC 50V 20A ( For each pin ) | |
| 2. Mechanical | ||
| 2A Cable OD | 6.0mm~11.0mm | |
| 2B Wise size | 3.6mm | |
| 2C Wire size | 2.5mm2 | |
| 2D Life test | Mating & Unmating 500 cycles | |
More Details about Material and Operating Environment of Powercon
1 . Material of powercon connecor
- material of contact : use the brass , specification is C3604
- material of housing / shell : PA66+30%GF V0 , people also name it 60G6F
2 . Operating Envrionment of connector
- Flammability : UL 94V-0
- Operation temperature range / class : -30℃~+80℃
- Preservative temperature range / class : -40℃~+85℃
FAQ
(1) Q : Where is your compay ?
A : Our company located in Shenzhen Guangdong
(2) Q : Can you provide the samples ? Are the samples free ?
A : Yes , we can support 1 - 3 sets sample free one time for quality test befor bulk order , but the shipping cost need to be paid .
(3) Q : What about the delivery time ?
A : In general , about 3 working days after payment received .
(4) Q : Are you the factory or trade company ?
A : We are the factory
(5) Q : Can you make the customization product ?
A : Yeah , welcom to the customization product , just talk with me about your requirement , like current voltage , application , cable specification etc .

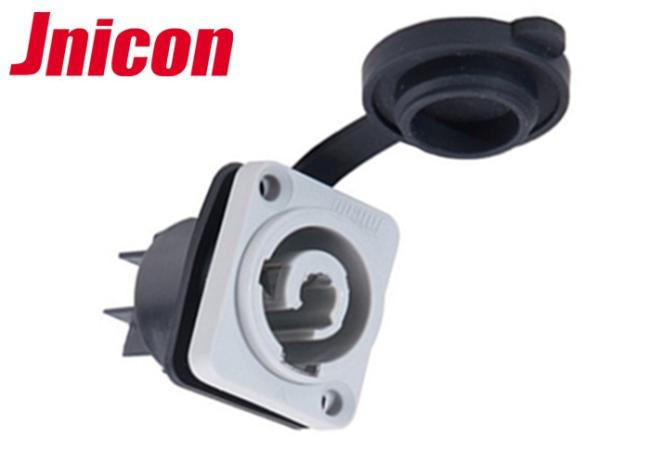

Gray IP65 Powercon Socket Connector

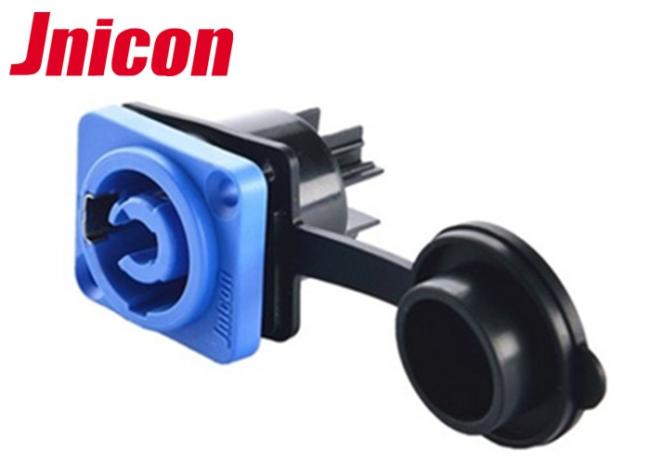

Blue IP65 Powercon Socket Connector
Product Display
