2 Pin Waterproof Male Female Connector IP68 Plastic Connector For Lighting

Characterization of  Goods

M12 2pin waterproof male female connector is widly used for outdoor lighting , like tunnel light , washing light , garden light , street light etc . In a word , you can apply the M12 waterproof wire connector in all of the lighting equipment , but the max current should be no more than 20 A , and the operating voltage is 300v  . So when you want to buy M12 waterproof wire connector , you should confirm some details

• NO .1   confirm the current & voltage
• NO .2   confirm the pin of contact
• NO .3   confirm the cable specification and cable OD
• NO .4   confirm the material of cable and length of cable

( PS : if you don't know a lot about the connector , just contact me , then tell me about your requirement of connector , I will provide  you with the solution )

Some Operating Datas About the M12 Waterproof Wire Connectors

Electrical characteristics & Mechanical

1  Electrical characteristics

• Contact Resistance : 3mΩ max.
• Insulation Resistance : 10MΩ min.
• Withstand Voltage : 2000V AC There shall be no breakdown.
• Rating : DC 50V 20A ( For each pin )

2  Mechanical

• Cable OD : 6.0mm~11.0mm
• Wise size : 0.3mm2
• Life test : Mating & Unmating 500 cycles

Picture - M12 2Pin Female Waterproof Wire Connectors

M12 2Pin Male Waterproof Wire Connectors

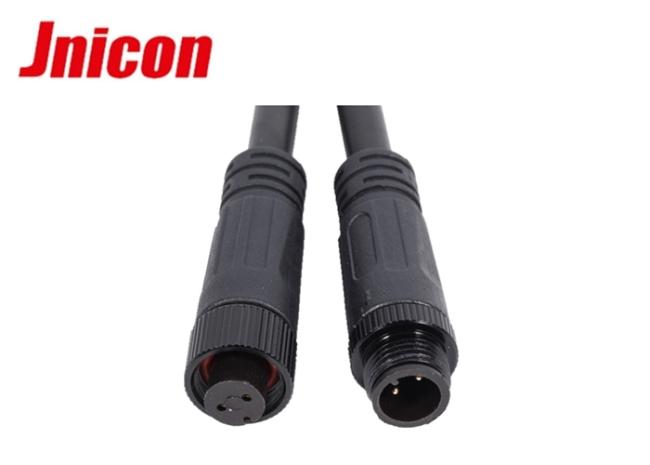

Male and Female Cable Connector IP68

Payment Method as Below

1. Usually pay for the payment by T / T , Paypal
2. L/C , D/A , D/P , Western Union are optional
3. In general , we arrange production after payment
4. Payment currency : US dollars or RMB
5. Payment term: T/T full payment before delivery
