20A Waterproof Male Female Connector Screw Type Wire 4 Pin Lighting Adapter

Characterization of  Product

M12 4pin waterproof male female connector is widly used for outdoor lighting , like tunnel light , washing light , garden light , street light etc . In a word , you can apply the M12 waterproof wire connector in all of the lighting equipment , but the max current should be no more than 20 A , and the operating voltage is 300v  .

All the contact can pass power / signal  , or you can treat 4pin as 2+2pin , 2pin just for power , 2pin just for signal . Contact material make by gold plated , can pass the power and signal stablly .

How to buy this connector from us ?

You should do something confirm the information  as below : , you should confirm some details

• Step 1   confirm the current & voltage , all the contact transport the power or both power and data
• Step 2   confirm the pin of contact , there are 4pin showed , we  also have 2pin , 3pin , 5pin, 6pin etc .
• Step 3   confirm the cable specification and cable OD
• Step 4   confirm the material of cable and length of cable
• Step 5   maybe there are other questions , please feel free to contact me . I will reply you at first time when working .

More Detials : Electrical Function & Mechanical

Electrical Function  & Mechanical

1  Electrical function part

• Contact Resistance : 3mΩ max.
• Insulation Resistance : 10MΩ min.
• Withstand Voltage : 2000V AC There shall be no breakdown.
• Operating Rating :20A 300V

2  Mechanical  part

• Cable OD : 6.0mm~11.0mm
• Wise size : max 1.5mm2 / 16AWG
• Life test : Mating & Unmating 500 cycles

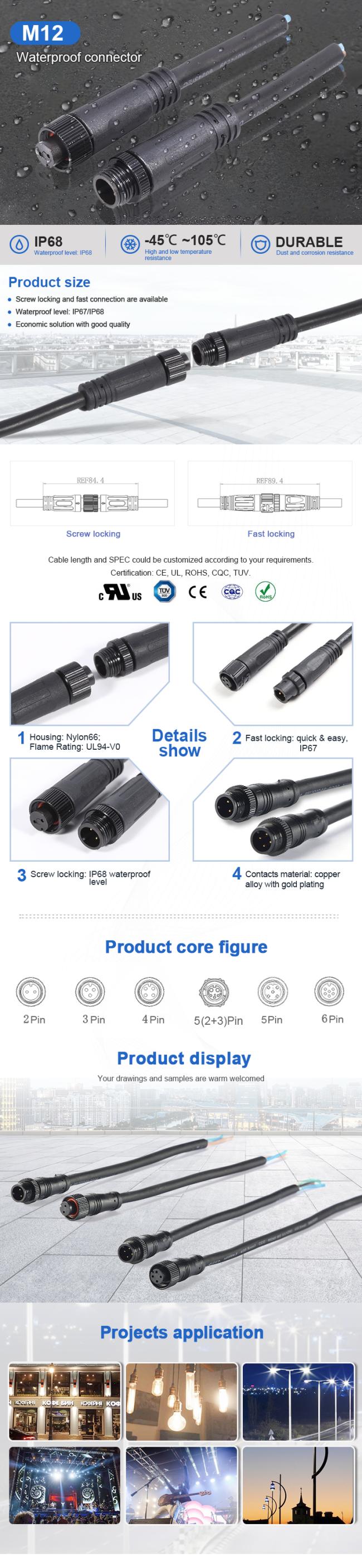

Picture - M12 4Pin Female Waterproof Wire Connectors

M12 4Pin Male Waterproof Wire Connectors

Application and Other Pin / Pole of M12 Waterproof  Male Female Connector

Packing and Delivering

1. Packaging Details: 500pcs to a skin packing to a carton Customized packing is welcome , MOQ of printing customized box is 3000 pcs each model .
2. Delivery Details: sample about 3 working days, products in 7 days after payment.
3. Weight ＜100 KG , we usually transport the good by internationl express .
4. If you have shipping agent please tell me , then we can send it to him / her .
