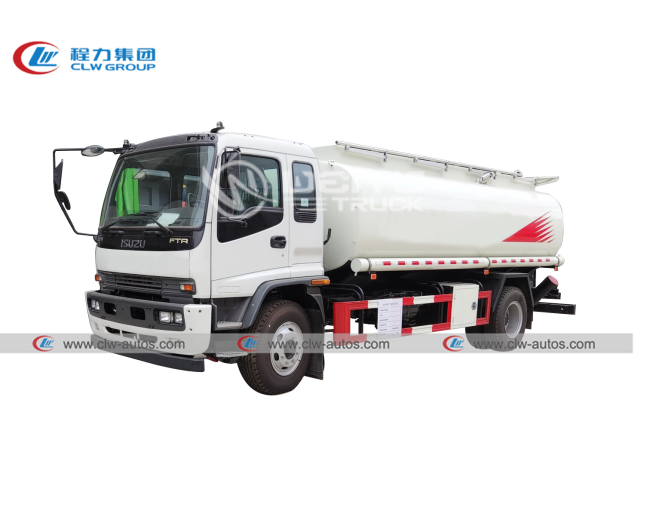

Isuzu FTR 12m3 Oil Transport Fuel Tanker Truck For Southeast Asia South America Market
Isuzu FTR 12m3 Oil Transport Truck Fuel Tanker Truck For Southeast Asia South America Market
Truck Chassis Main Specification:
1. Isuzu chassis with one and half row cabin
2. Diesel Engine,4HK1-TC50, 205HP, EURO-5
3. Steering Wheel: LHD, Left Hand Drive
4. Japan brand MLD 6 Speed Transmission/Gearbox
5. Front Axle, 6.3Tons Capacity, 1 pieces; Rear Axle: 13Tons
6. Tire: 11R22.5
Upper Body Main Specification:
1. Tank material: carbon steel
2. Tank capacity: 12cbm, 12000liters, 12000L
3. Tanker compartment: Optional 1,2,3,4 compartments

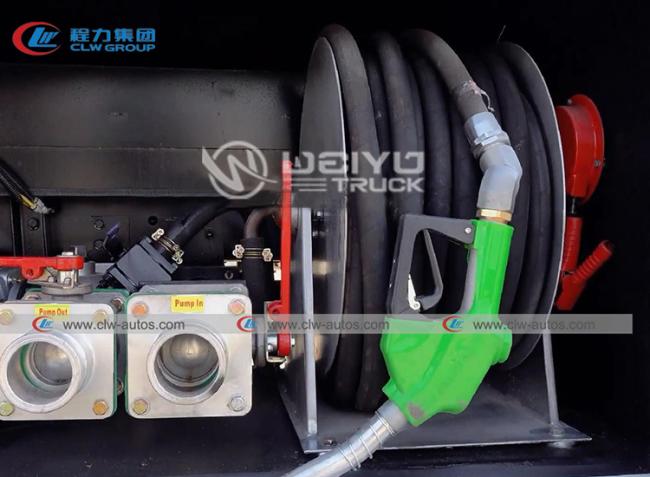

4. Optional accessories: over flow probe system, vapor recovery system, bottom valve, API adaptors, fuel pump, refueling dispenser, flow meter, dipstick etc.
Specifications of 12000 liters Fuel Delivery Truck
| Vehicle Description | ||
| Overall dimensions | 8250x2500x3200mm | |
| GVW | 16000kg | |
| Curb weight | 5675kg | |
| Chassis brand | Japan I suzu | |
| Traction type | 4*2 | |
| Tanker Description | ||
| Tank capacity | 12cbm, 12m3, 12000liters, 12000L | |
| Tanker material | Carbon steel | |
| Thickness | Tanker body | 5mm |
| End cover | 5mm | |
| Tanker shape | Square | |
| Tanker compartment | 1 compartment (optional: several compartment) | |
| Standard configuration | 1 set manhole . | |
| Equipped with double discharge valve and valve box. | ||
| Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. | ||
| Electrostatic conducting tape and double fire extinguishers. | ||
| Optional | Tanker material: stainless steel, aluminum alloy, carbon steel | |
| Chinese standard configuration is available, or other world famous fuel configuration. | ||
| over flow probe system, vapor recovery system, bottom valve, API adaptors. | ||
| Emergency bottom valve and foldable aluminum handrail. | ||
| Others: fuel pump, refueling dispenser, flow meter,dipstick, etc. | ||
| Chassis Description | ||
| Cab | 3 Passenger , with air-conditioner. | |
| Wheelbase | 4700 mm | |
| Tire specification | 11R22.5 | |
| Tire quantity | 6+1 units | |
| Engine | Emission level | Euro 5 |
| Brand | 4HK1-TC50 | |
| Horse power | 205 HP | |
| Gear box | Number of gears | 6 forward gears& 1 reverse |
| Brake system | Air brake | |
| Axle | Front | 6300kg |
| Rear | 13000 kg | |
| Suspension | Leaf springs | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
| Capacity | 160L | |

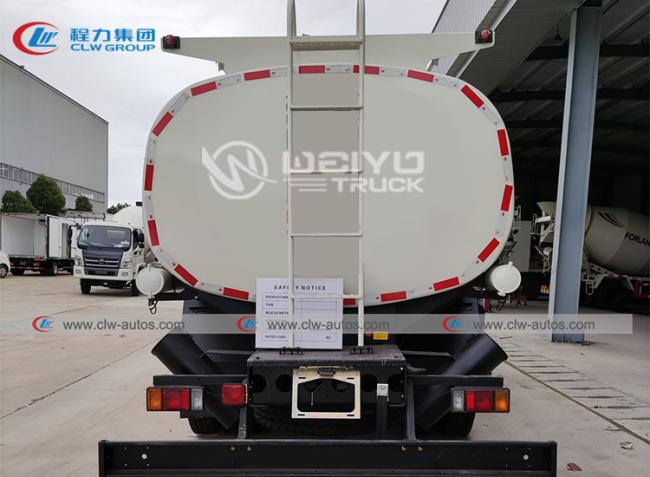

Reference photos
Factory overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Fuel Dispenser Tanker Truck I can order from your company?
A: We can supply different size Fuel Dispenser Tanker Truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Fuel Dispenser Tanker Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for Fuel Dispenser Tanker Truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
