TD025THEEA -10 ~ 60°C 2.5 Inch 640*240 LTPS TFT LCD Panel 40/40/20/50 (Typ.)(CR≥10)
1.Main Information:

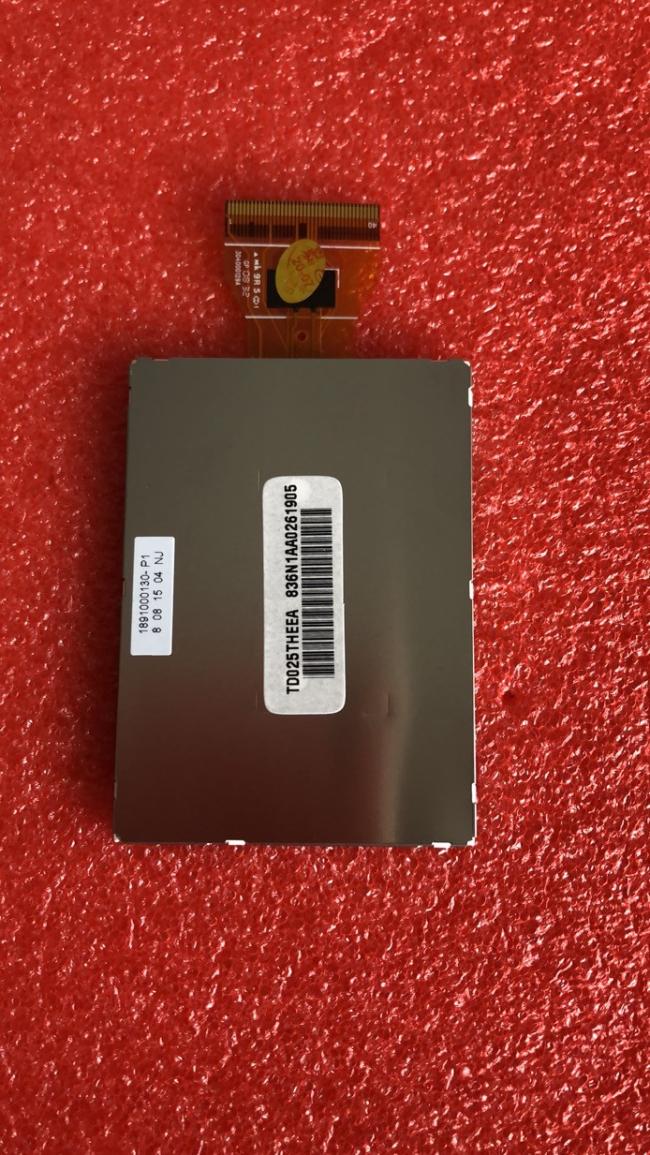

TPO Displays Corp. TD025THEEA (Alias: 990000377) is a 2.5 Inch diagonal LTPS TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -30 ~ 80°C .
It's general features are following: WLED Backlight , Right side FPC.
Based on its features,this model be applied to Digital Still Camera, Digital Video Camera etc.
2.TPO TD025THEEA Optical Features:
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 40/40/20/50 (Typ.)(CR≥10) | 13/22 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 |
3.TPO TD025THEEA Mechanical Features:
| Panel Size | 2.5 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640×240 [HVGA] | RGB Delta | - [129PPI] | 0.0785×0.1575 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 50.28(H) × 37.8(V) | 52.8(H) × 40.3(V) | 61.7(H) × 44.5(V) | 2.68/2.98 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | - | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 14.5g (Max.) | - | Hard coating (3H) | ||
4.TPO TD025THEEA Interface Features:
| Panel Driving Electrical | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.0V (Typ.) | - | 40/50mW (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Serial RGB (8-bit) + SPI, CCIR601 | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
5.TPO TD025THEEA Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 2S1P | 1 string | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 6.4/7.2V (Typ./Max.) | 23/25mA (Typ./Max.) | 166/200mW (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
