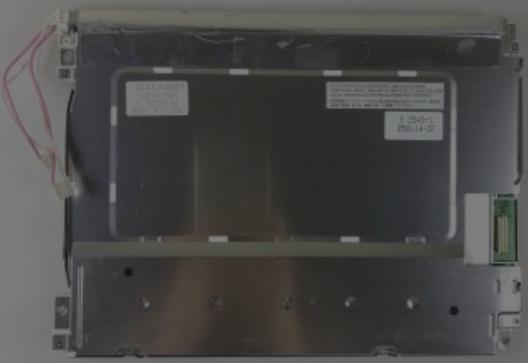

LQ104V1DG51 LCD screen 10.4" 640×480 VGA 76PPI Industrial TFT Display
LQ104V1DG51 10.4 INCH SHARP TFT-LCD 640(RGB)×480, VGA, 76PPI PIXEL -10 ~ 65 °C Industrial LCD Panel
1. Main Information:
The LQ104V1DG51 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 65°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, Life ≥ 50K hours, U/D,L/R Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc.
2. Sharp LQ104V1DG51 Mechanical Features
| Screen Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 214.6×162.4 mm | 246.5×179.4 mm | 15.5 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 620g (Max.) | - | Antiglare, Hard coating (3H), Antireflection | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
3. Sharp LQ104V1DG51 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 50K(Min.) | 2 pcs | Straight | Replaceable (LQ0DDB5337) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 467V (Typ.) | 3.5/6.0/7.0mA (Min./Typ./Max.) | 5.6W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 40/60/70KHz (Min./Typ./Max.) | 1000/1450V (Max.)(Ta=+25/-10℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
4. Sharp LQ104V1DG51 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.) | 180/150mA (Typ.)(3.3V/5.0V) | - | ||||
| Voltage for Display Signals : | VIL≤0.3VCC; 0.7VCC≤VIH | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9MA-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010K | |
