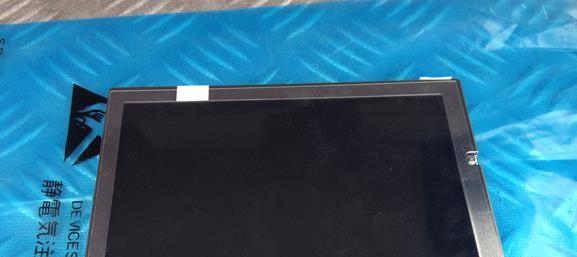

320nits LCM 640×480 WLED TTL Industrial TFT Display NL6448BC18-01B
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
NEC
Product Description
NEC NL6448BC18-01B Summary
NL6448BC18-01B is a 5.7" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It's general features are summarized by Panelook in the following: With Touch, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, U/D,L/R Reverse , Based on NL6448BC18-01. Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q3, 2012, Now this model is discontinued. There are 1 items stock and 2 suppliers of this model on Panelook. We inputted this model's specification on Aug 31 2012 for the first time, and the latest update on Jul 30 2014. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail of NL6448BC18-01B. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!
NEC NL6448BC18-01B Application Details
| Basic Info : | Panel Brand | Panel Model | NL6448BC18-01B | |
|---|---|---|---|---|
| Diagonal Size | 5.7" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | - | Storage Temp. | - |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
| Remarks : | Based on NL6448BC18-01 | |||
NEC NL6448BC18-01B Mechanical Details
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.0605×0.1815 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1815×0.1815 mm (H×V) [139PPI] | |
| Mechanical Size : | Display Area | 116.16×87.12 mm (H×V) | Bezel Area | - |
| Outline Dim. | 135×104.6 mm (H×V) | Outline Depth | 11.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | 4-wire Resistive Touch |
NEC NL6448BC18-01B Optical Details
| Basic Information : | Brightness | 320 cd/m² (Typ.) | Contrast Ratio | 820:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 3/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.350 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6963K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
NEC NL6448BC18-01B Interface Details
| Signal Systerm : | CMOS (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 100/175mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| Kyocera Elco | 08-6260-033-340-829+ | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-020B | |
