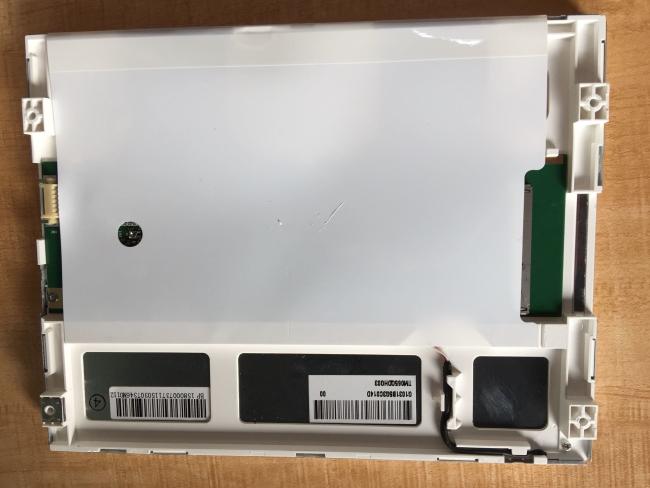

TM065QDHG03 TIANMA 6.5" 640(RGB)×480 INDUSTRIAL LCD DISPLAY
TIANMA TM065QDHG03 Application Details
| Basic Detail : | Manufacturer | Model Name | TM065QDHG03 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
TIANMA TM065QDHG03 Optical Details
| Basic Information : | Luminance | - | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 262K (6-bit) |
TIANMA TM065QDHG03 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.069×0.207 mm | Pixel Pitch(W×H) | 0.207×0.207 mm [122PPI] | |
| Physical Size : | Active Viewing | 132.48(W)×99.36(H) mm | Overall Dim. | - |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | - | Surface | Antireflection |
TIANMA TM065QDHG03 Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
TIANMA TM065QDHG03 Interface Details
| Signal Electrical : | Input Current | 210/315mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF19K-20P-1H | 1 pcs | 1.0 mm | 20 pins | ||
with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 132.48(W)×99.36(H) mm, with surface treament of Antireflection. As a TN, Normally White, Transmissive LCM product, TM065QDHG03 can provides 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. TM065QDHG03 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz
