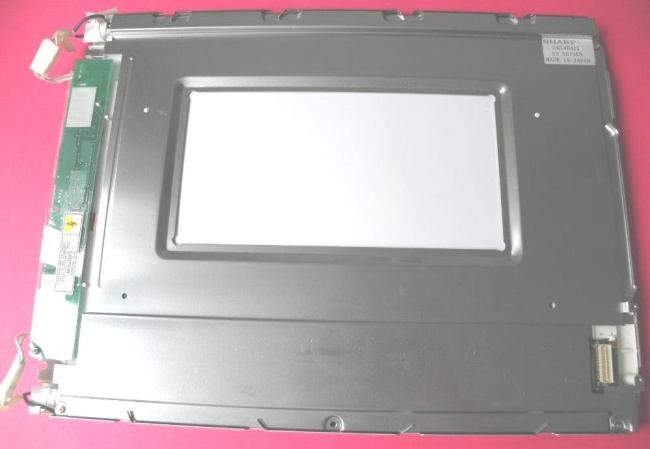

LQ14D412 Sharp 13.8" LCM 640×480RGB 180cd/m² INDUSTRIAL LCD DISPLAY
Sharp LQ14D412 Mechanical Features
| Panel Size : | 13.8 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.1465×0.4329 mm | 0.4395×0.4329 mm [58PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 281.3×207.8 mm | - | 330×242 mm | 18±1 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | Normal bezel | |
| Fixation : | Face mounting holes (4 pcs) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.40±0.05Kgs | Antiglare (Haze 6%), Hard coating (2H) | ||
Sharp LQ14D412 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 180 cd/m² (Typ.) | TN, Normally White, Transmissive | 100:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/10/30 (Min.)(CR≥10) | 6 o'clock | 30/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| Luminance Variation : | 1.45 (Max.)(5 points) | ||
Sharp LQ14D412 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 350/700mA (Typ./Max.)(ICC) | 5.0V (Typ.)(VCC) | - | ||||
| Voltage for Display Signals : | VIL≤0.3VCC; 0.7VCC≤VIH | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| Panasonic | AXN440330* | 1 pcs | 0.8 mm | 40 pins | DRGB-40P1C8B-140A | |
Sharp LQ14D412 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | Straight | 2 pcs | 10K(Min.) | - | |
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | With Inverter | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | S5B-PH-SM3 | 1 pcs | 2.0 mm | 5 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 700/3.3mA (Typ.) (IDD/IEE) | 12.0/5.0V (Typ.)(VDD/VEE) | - | ||||
LQ14D412 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 281.3(W)×207.8(H) mm, outline size of 330(W)×242(H)×19(D) mm, with surface treament of Antiglare (Haze 6%), Hard coating (2H), net weight of 1.40±0.05Kgs. As a TN, Normally White, Transmissive LCM product, LQ14D412 can provides 180 cd/m² display brightness 100:1 transimissive contrast ratio, 45/45/10/30 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 10K hours, With Inverter.
