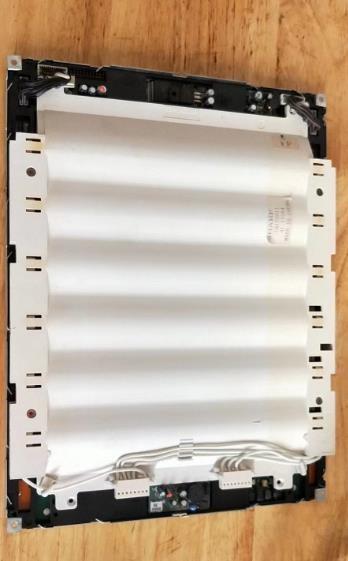

LQ10DH15 Sharp 10.4" LCM 640×480RGB 100cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
Sharp LQ10DH15 Mechanical Features
| Screen Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 217.8×165.0 mm | 283×217 mm | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 950g (Max.) | - | Antiglare, Hard coating (2H) | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
Sharp LQ10DH15 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 100 cd/m² (Typ.) | TN, Normally White, Transmissive | 60:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 45/45/10/30 (Typ.)(CR≥10) | 30/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8139K | 512 (3-bit) | X:0.290; Y:0.315 |
Sharp LQ10DH15 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | 10K(Min.) | 6 pcs | - | Replaceable | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 290±30V | 6.3/7.0/7.7mA (Min./Typ./Max.) | 12.0W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 20/40KHz (Min./Max.) | 560V (Max.)(Ta=+25℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| molex | 5102-08 | 1 pcs | 8 pins | 2.5 mm | BLL-8PINS-LNNHNHNH | |
| molex | 5102-08 | 1 pcs | 8 pins | 2.5 mm | BLL-8PINS-NNNHNHNH | |
Sharp LQ10DH15 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0/12.0V (Typ.)(VCC/VDD) | 150/420mA (Max.)(ICC/IDD) | - | ||||
| Voltage for Display Signals : | VIL≤0.8V; 2.0V≤VIH | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 3-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF11-22DP-2DSA(01) | 1 pcs | 22 pins | 2.0 mm | DRGB-22P1C3B-020A | |
