China LQ10D34G Sharp10.4Inch LCM 640×480RGB INDUSTRIAL LCD DISPLAY for sale

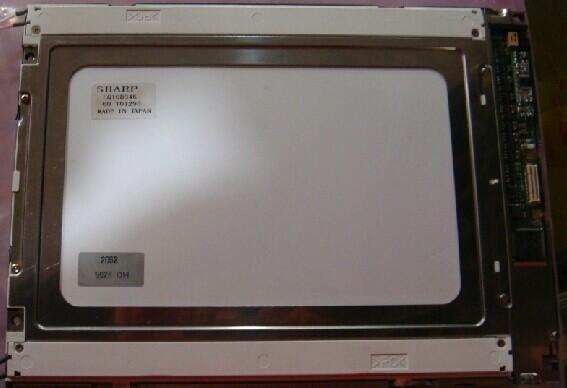

LQ10D34G Sharp10.4Inch LCM 640×480RGB INDUSTRIAL LCD DISPLAY

Price Negotiable

Price: Negotiable

MOQ: 1PCS

Delivery Time: 1-2 DAYS

Brand: SHARP

Product Description

LQ10 Series LQ10D34G LQ10D341

Sharp LQ10D34G Optical Details

Basic Detail :	Luminance - Contrast Ratio 100:1 (Min.) (Transmissive) Good View at 6 o'clock Response Speed 30/50 (Typ.)(Tr/Td) ms Viewing Angle 35/35/10/30 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity - Support Color 262K (6-bit)
Dispaly Performance :	Outdoor Visibility - Transmissivity 7.3% (Typ.)(with Polarizer)

Sharp LQ10D34G Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size :	Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 265(W)×195(H) mm Bezel Opening 216.2(W)×163.4(H) mm Overall Depth 8.0±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Other Detail :	Mass 420g (Typ.) Surface Antiglare (Haze 25%), Hard coating (2H), Antireflection

Sharp LQ10D34G Interface Detail

Signal Electrical :	Input Current 280mA (Typ.)(ICC) Input Voltage 5.0V (Typ.)(VCC) Consumption - Signal Interface Parallel RGB (1 ch, 6-bit)
Logic Voltage :	VIL≤0.3VCC; 0.7VCC≤VIH
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF9BA-31P-1V 1.0 mm 31 pins 1 pcs DRGB-31P1C6B-010K

Sharp LQ10D34G Lightting Details

Lamp Features :	Lamp Type No B/L Amount - Position - Exchange - Lamp Shape - Lamp Life -

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
