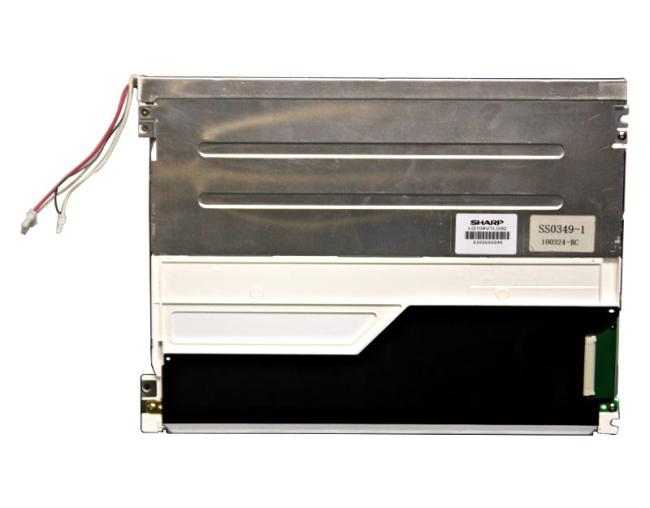

10.4" LCM 640×480RGB 330cd/m² LQ104V1LG92 Sharp TFT LCD Display
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ104 Series LQ104V7DS01 LQ104V1LG92 LQ104V1LG81 LQ104V1LG61
Sharp LQ104V1LG92 Mechanical Features
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | - | 240×179.2 mm | 10.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 520g (Max.) | - | ||
Sharp LQ104V1LG92 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 330 cd/m² (Typ.) | TN, Normally White, Transmissive | - | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| - | - | - | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 16.7M (6-bit + Hi-FRC) | - |
Sharp LQ104V1LG92 Electronics Features
| Power Consumption : | 6.2W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
