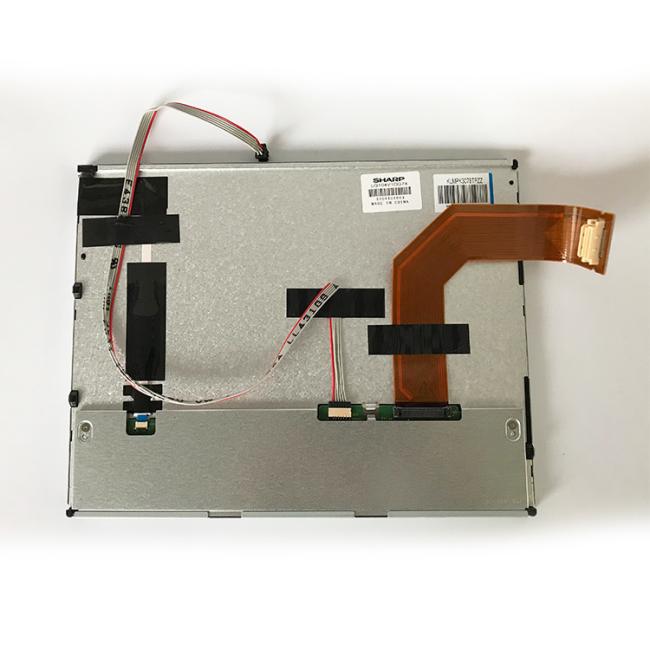

LQ104V1DG74 Sharp 10.4" LCM 640×480RGB 370cd/m² INDUSTRIAL LCD DISPLAY
LQ104 Series LQ104V1DG74 LQ104V1DG72 LQ104V1DG71 LQ104V1DG62
Sharp LQ104V1DG74 Application Details
| Basic Detail : | Manufacturer | Model Name | LQ104V1DG74 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS |
Sharp LQ104V1DG74 Optical Details
| Basic Information : | Luminance | 370 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 35 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Support Color | 262K (6-bit) |
| Color Temperature | 7351K | White Uniformity | 1.33 (Max.)(5 points) |
Sharp LQ104V1DG74 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 227.3(W)×177.5(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm | Overall Depth | 10.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 500g | Surface | Antiglare, Hard coating (3H) |
Sharp LQ104V1DG74 Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 3.4W (Typ.) |
Sharp LQ104V1DG74 Interface Details
| Signal Electrical : | Input Current | 300mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| FH63-40S-0.5SH | 1 pcs | 0.5 mm | 40 pins | |||
Sharp LQ104V1DG74 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | - | Life | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-S6P-HFE | 1 pcs | 1.25 mm | 6 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 200mA (Typ.) | Input Voltage | 12±1.2V | ||
LQ104V1DG74 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 227.3(W)×177.5(H)×10(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 500g. As a TN, Normally White, Transmissive LCM product, LQ104V1DG74 can provides 370 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver.
