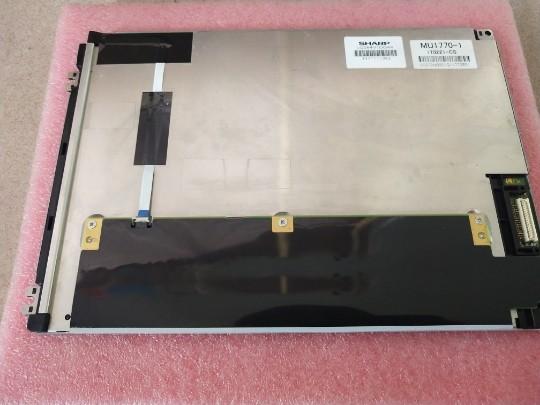

LQ084V1DG44 Sharp 8.4" LCM 640×480RGB INDUSTRIAL LCD DISPLAY
LQ084 Series LQ084V1DG44 LQ084V1DG43 LQ084V1DG42 LQ084V1DG41
Sharp LQ084V1DG44 Application Details
| Basic Information : | Brand | Model | LQ084V1DG44 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.4" | Alias | - |
Sharp LQ084V1DG44 Mechanical Details
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.089×0.267 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.267×0.267 (H×V) [95PPI] | |
| Mechanical Size : | Active Area(mm) | 170.88(H) × 128.16(V) | Bezel Area(mm) | 175.9(H) × 134.6(V) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
Sharp LQ084V1DG44 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LQ084V1DG44 | a-Si TFT-LCD , LCM |
Sharp LQ084V1DG44 Interface Features
| Interface Features : | Position | Type | Interface | |||
|---|---|---|---|---|---|---|
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×128.16(H) mm, viewing area size of 175.9(W)×134.6(H) mm. As a TN, Normally White, Transmissive LCM product, LQ084V1DG44 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side). LQ084V1DG44 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm Connector. For more latest product detail of LQ084V1DG44 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with Sharp
