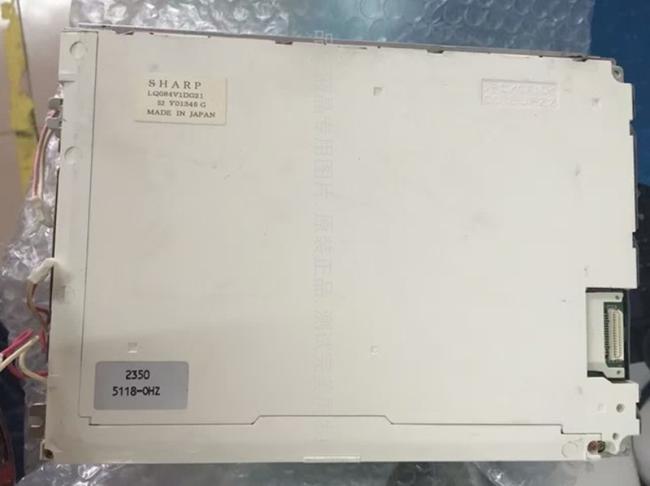

LQ084V1DG21 Sharp 8.4" LCM 640×480RGB 300cd/m² INDUSTRIAL LCD DISPLAY
LQ084 Series LQ084V1DG22 LQ084V1DG21E LQ084V1DG21
Sharp LQ084V1DG21 Mechanical Details
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.089×0.270 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.267×0.270 (H×V) [94PPI] | |
| Mechanical Size : | Active Area(mm) | 170.88(H) × 129.6(V) | Bezel Area(mm) | 175.9(H) × 134.6(V) |
| Outline Dim.(mm) | 216(H) × 152.4(V) | Depth(mm) | 12.0±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4 pcs) | |||
| Other Spec : | Weight | 410±20g | Treatment | Antiglare (Haze 28%), Hard coating (3H), Antireflection |
Sharp LQ084V1DG21 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 250:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 55/55/55/40 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 20/40 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.45 (Max.)(5 points) |
Sharp LQ084V1DG21 Interface Details
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.)(VCC) | Current Supply | 410mA (Typ. VCC=3.3V)(ICC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | VIL≤0.3VCC; 0.7VCC≤VIH | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9BA-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010K | |
Sharp LQ084V1DG21 Backlight Details
| Backlight Features: | Shape | - | Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (LQ0DDB0004) | Quantity | 1 pcs | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | Current Supply | 2.0/6.0/6.5mA (Min./Typ./Max.) | |||
| Frequency | 20/45/70KHz (Min./Typ./Max.) | Startup Voltage | 1300/1500V (Max.)(Ta=+25/0℃) | |||
| Consumption | 4.1W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
LQ084V1DG21 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×129.6(H) mm, outline size of 216(W)×152.4(H)×12.5(D) mm, viewing area size of 175.9(W)×134.6(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (3H), Antireflection, net weight of 410±20g. As a TN, Normally White, Transmissive LCM product, LQ084V1DG21 can provides 300 cd/m² display brightness 250:1 transimissive contrast ratio, 55/55/55/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20/40 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed.
