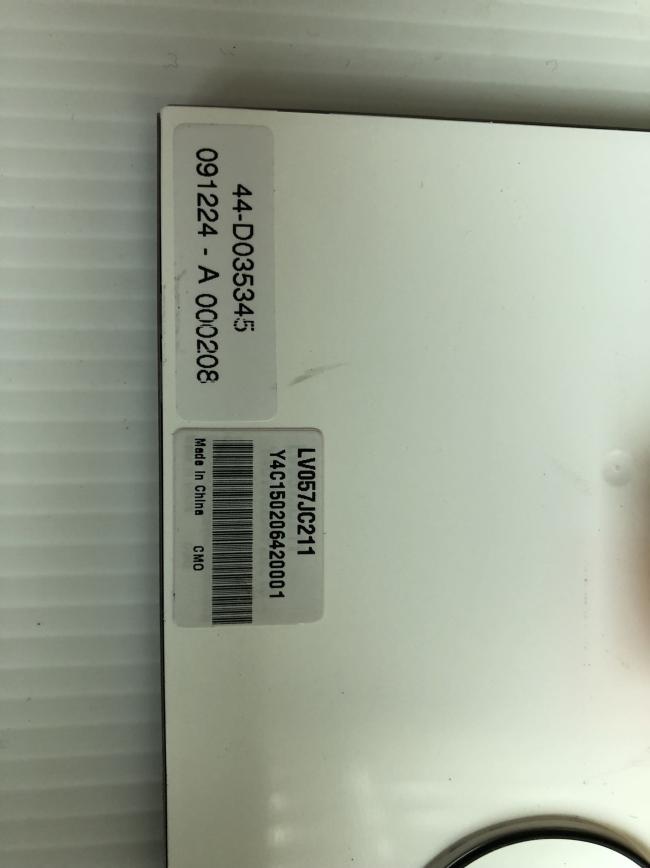

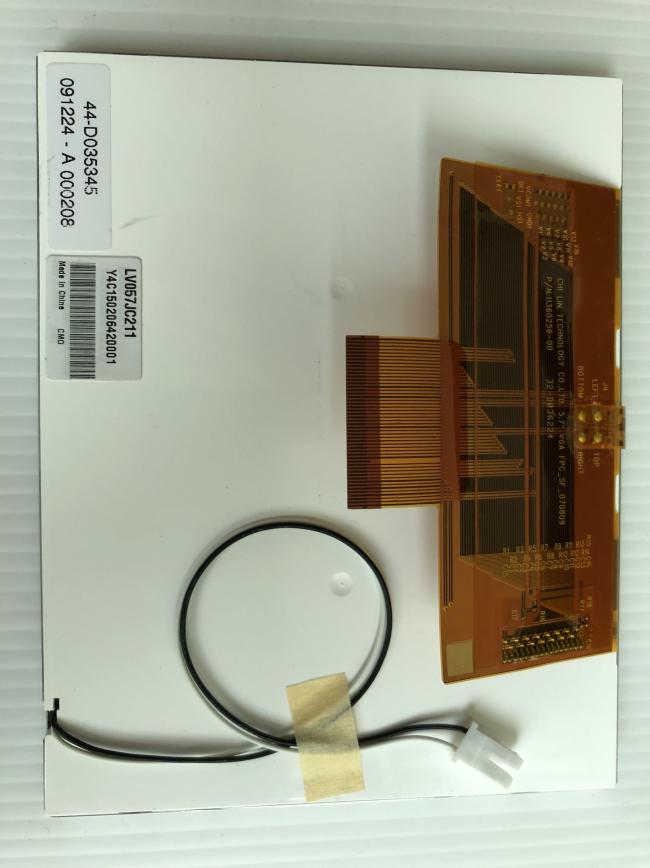

LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
CHIHSIN
Product Description
ChiHsin LV057JC211 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LV057JC211 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C |
ChiHsin LV057JC211 Mechanical Features
| Panel Size : | 5.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.060×0.180 mm | 0.180×0.180 mm [141PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 115.2×86.4 mm | - | 125×98.8 mm | 6.74/7.14 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 130g (Typ.) | |||
ChiHsin LV057JC211 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 60/60/60/45 (Typ.)(CR≥10) | 12 o'clock | 15/35 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 |
ChiHsin LV057JC211 Electronics Features
| Reverse Scan : | Yes (U/D, L/R) |
|---|
ChiHsin LV057JC211 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 6.5/15mA (Typ.)(IDD/IAVDD) | 3.3/8.4/15.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) | 164mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | TTL (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 50 pins | |||||
ChiHsin LV057JC211 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 7S3P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 60mA (Typ.) | 22.0/24.5V (Typ./Max.) | 1.32W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 2 pins | BLE-2PINS-AC | ||||
