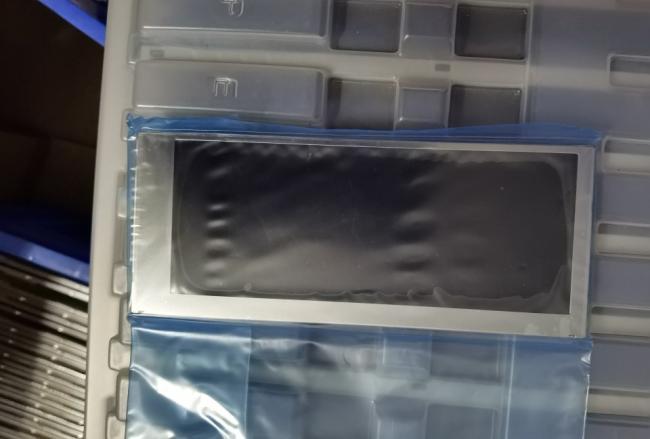

TCG062HVLDA-G20 Kyocera 6.2INCH LCM 640×240RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG062HVLDA-G20 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TCG062HVLDA-G20 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
Kyocera TCG062HVLDA-G20 Mechanical Features
| Panel Size : | 6.2 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×240, HVGA | RGB Vertical Stripe | 0.077×0.231 mm | 0.231×0.231 mm [109PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 147.84×55.44 mm | 150.8×58.5 mm | 173×70 mm | 6.7±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 8:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 105g (Typ.) | Glare (Haze 0%) | ||
Kyocera TCG062HVLDA-G20 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥5) | 6 o'clock | 15/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 5598K | 262K (6-bit) | X:0.330; Y:0.350 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 64% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Kyocera TCG062HVLDA-G20 Electronics Features
| Reverse Scan : | Yes (U/D, L/R) |
|---|
Kyocera TCG062HVLDA-G20 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 130/170mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| IRISO | IMSA-9681S-40A-GF | 1 pcs | 0.5 mm | 40 pins | ||
Kyocera TCG062HVLDA-G20 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 40K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| - | 3.0/5.5V (Min./Max.) | - | ||||
