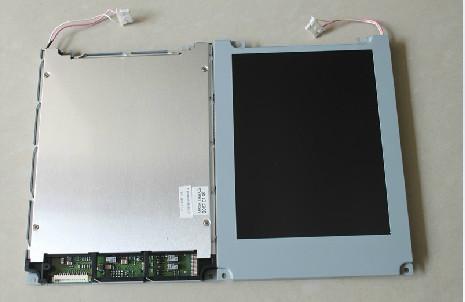

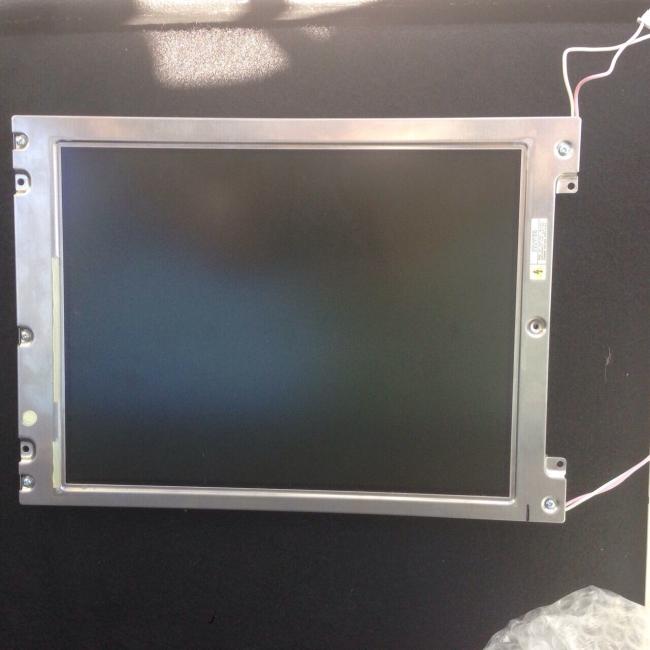

TCG075VGLBB-G00 Kyocera 7.5INCH LCM 640×480RGB 200NITS WLED TTL INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG075VGLBB-G00 Application Details
| Basic Info : | Panel Brand | Panel Model | TCG075VGLBB-G00 | |
|---|---|---|---|---|
| Diagonal Size | 7.5" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - |
Kyocera TCG075VGLBB-G00 Mechanical Details
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.079×0.237 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.237×0.237 mm (H×V) [107PPI] | |
| Mechanical Size : | Display Area | 151.68×113.76 mm (H×V) | Bezel Area | 156.3×118.4 mm (H×V) |
| Outline Dim. | 173×133 mm (H×V) | Outline Depth | 7.8 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | TBD | Surface | Glare (Haze 0%) |
Kyocera TCG075VGLBB-G00 Optical Details
| Basic Information : | Brightness | 200 cd/m² (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥5) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 5/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 262K (6-bit) |
Kyocera TCG075VGLBB-G00 Electronics Details
| Reverse Scan : | Yes (U/D, L/R) |
|---|
Kyocera TCG075VGLBB-G00 Backlight Details
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4 strings | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 18.3/19.5V (Typ./Max.) | Current Input | 15mA (Typ.) | ||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
Kyocera TCG075VGLBB-G00 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| IRISO | IMSA-9681S-40A-GF | 0.5 mm | 40 pins | 1 pcs | ||
