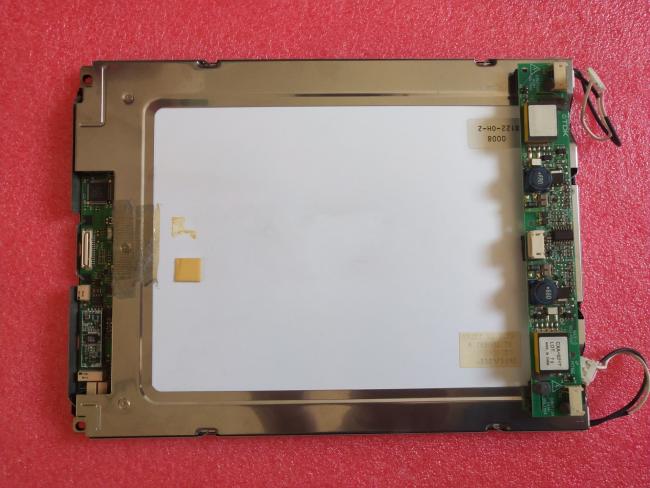

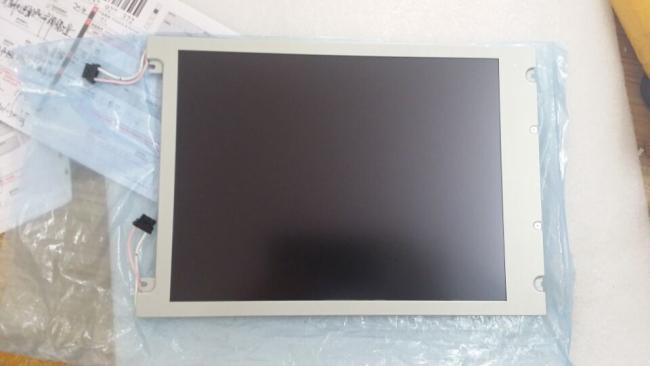

TCG075VGLDA-G00 Kyocera 7.5INCH LCM 640×480RGB 250NITS WLED TTL INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2day
Brand: Kyocera
Product Description

Kyocera TCG075VGLDA-G00 Application Details

Basic Detail :
Manufacturer

TCG075VGLDA-G00Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
7.5 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG075VGLDA-G00 Optical Details

Basic Detail :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
15/20 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.320; Wy:0.340
Support Color
262K (6-bit)
Color Temperature
6066K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
71% coverage
Adobe RGB
55% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG075VGLDA-G00 Mechanical Details

Pixel Features :
Number of Pixel
640(RGB)×480, VGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.079×0.237 mm
Pixel Pitch(W×H)
0.237×0.237 mm [107PPI]
Physical Size :
Active Viewing
151.68(W)×113.76(H) mm
Overall Dim.
173(W)×133(H) mm
Bezel Opening
156.3(W)×118.4(H) mm
Overall Depth
6.35±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Other Detail :
Mass
205g (Typ.)
Surface
Glare (Haze 0%)



Kyocera TCG075VGLDA-G00 Electronics Details

Reverse Scan :
Yes (U/D, L/R)





Kyocera TCG075VGLDA-G00 Interface Detail

Signal Electrical :
Input Current
160/210mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
IRISO
IMSA-9681S-40A-GF
0.5 mm
40 pins
1 pcs



Kyocera TCG075VGLDA-G00 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
4 strings
Position
Edge light type
Exchange
-
Lamp Shape
4 strings
Lamp Life
40K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
18.8/20.0V (Typ./Max.)
Input Current
15mA (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
