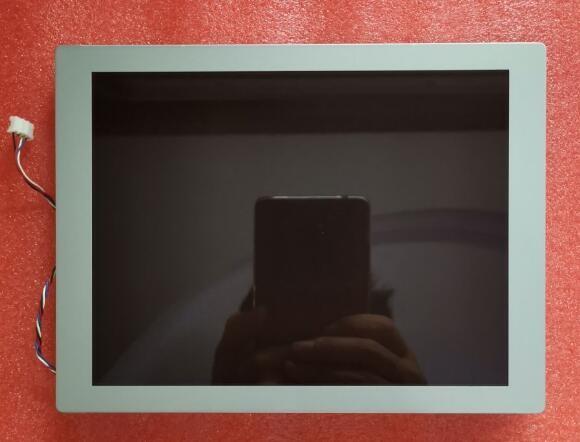

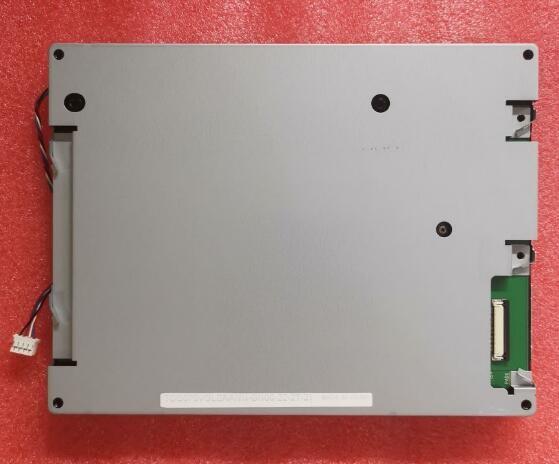

TCG075VGLEAANN-GN00 Kyocera 7.5INCH LCM 640×480RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG075VGLEAANN-GN00 Application Details
| Basic Info : | Panel Brand | Panel Model | TCG075VGLEAANN-GN00 | |
|---|---|---|---|---|
| Diagonal Size | 7.5" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - |
Kyocera TCG075VGLEAANN-GN00 Mechanical Details
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.079×0.237 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.237×0.237 mm (H×V) [107PPI] | |
| Mechanical Size : | Display Area | 151.68×113.76 mm (H×V) | Bezel Area | 156.3×118.4 mm (H×V) |
| Outline Dim. | 184×139.8 mm (H×V) | Outline Depth | 12.7±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting holes (4-Φ2.5) | |||
| Other Features : | Weight | 340g (Typ.) | Surface | Glare (Haze 0%) |
Kyocera TCG075VGLEAANN-GN00 Optical Details
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 15/20 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.320; Wy:0.350 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6022K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 67% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 50% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Kyocera TCG075VGLEAANN-GN00 Electronics Details
| Reverse Scan : | Yes (U/D, L/R) |
|---|
Kyocera TCG075VGLEAANN-GN00 Backlight Details
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 strings | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 15.0/17.6V (Typ./Max.) | Current Input | 60mA (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | PHR-4 | 2.0 mm | 4 pins | 1 pcs | BLE-4PINS-AACC | |
Kyocera TCG075VGLEAANN-GN00 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 160/210mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| IRISO | IMSA-9632S-33Z02-GF1 | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-020A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
