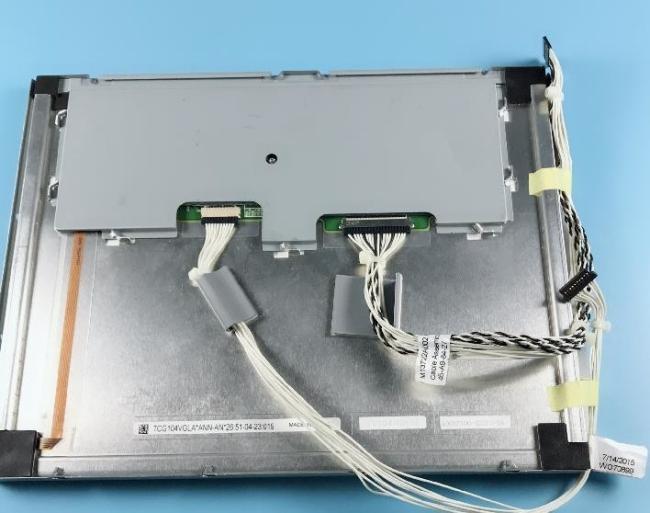

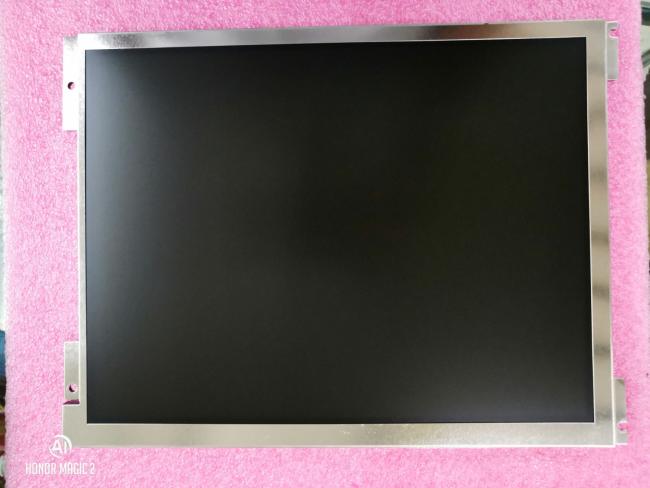

640×480RGB 320nits WLED TTL Industrial Lcd Display TCG104VGLAAAFA-AA20

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2day
Brand: Kyocera
Product Description

Kyocera TCG104VGLAAAFA-AA20 Application Details

Basic Information :
Brand

TCG104VGLAAAFA-AA20Model
Type
a-Si TFT-LCD , LCM
Used For

10.4 inchScreen Size
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

-Vibration



Kyocera TCG104VGLAAAFA-AA20 Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.110×0.330 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.330×0.330 (H×V) [76PPI]
Mechanical Size :
Active Area(mm)
211.2(H) × 158.4(V)
Bezel Area(mm)
215.4(H) × 162.2(V)
Outline Dim.(mm)
240.7(H) × 180.2(V)
Depth(mm)
10.8±0.75
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Touch Panel :
Touch Points
1 point
Touch Panel
4-wire Resistive Touch
TP Controller
Without touch controller
Touch Signal
-
Mounting :
Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Spec :
Weight
580g (Typ.)
Treatment
Antiglare, Hard coating (2H)



Kyocera TCG104VGLAAAFA-AA20 Optical Details

Basic Information :
Luminance(cd/m²)
320 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
10/20 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.305; Wy:0.315
Display Colors
262K (6-bit)
Color Temperature
7106K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
48%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG104VGLAAAFA-AA20 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)



Kyocera TCG104VGLAAAFA-AA20 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
150/185mA (Typ./Max.)
Signal Type :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.8V; 2.3V≤VIH≤VIN
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
Kyocera Elco
04-6240-040-023-846+
0.5 mm
40 pins
1 pcs



Kyocera TCG104VGLAAAFA-AA20 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
100K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±1.2V
Current Supply
290/450mA (Typ./Max.)
