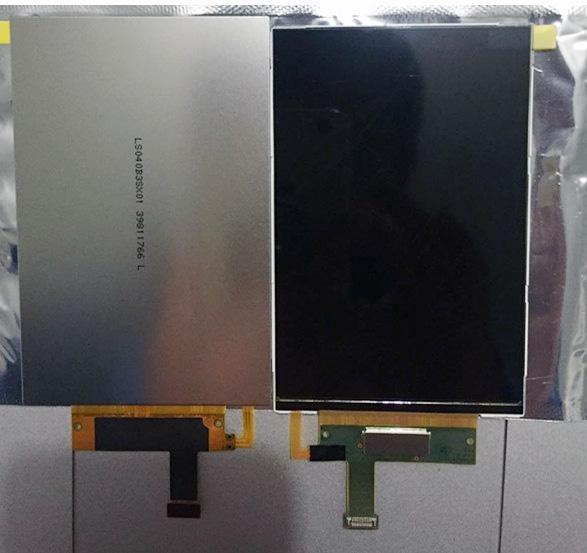

LS040B3SX01 Sharp 4INCH LCM 640×960RGB 450cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
Sharp LS040B3SX01 Mechanical Features
| Panel Size : | 4.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×960, DVGA | RGB Vertical Stripe | 0.029×0.087 mm | 0.087×0.087 mm [291PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 55.68×83.52 mm | - | 59.8×91.85 mm | 1.6±0.2 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 2:3 (W : H) | Portrait type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 19.0g | Clear | ||
Sharp LS040B3SX01 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 11/24 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6666K | 16.7M (8-bit) | X:0.310; Y:0.327 |
Sharp LS040B3SX01 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 11.4/37.0mA (Typ./Max.) | 1.8/5.5V (Typ./Max.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | MIPI (2 data lanes) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| molex | 502430-2410 | 1 pcs | 0.4 mm | 24 pins | ||
Sharp LS040B3SX01 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 7S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20mA (Typ.) | 21.7V (Typ.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
