6x4 Dumper 371hp Second Hand Tipper Trucks With 20t - 30t Load Capacity
MOQ:
1 Set
Delivery Time:
15-30 Work Days
Brand:
HOWO
Product Description

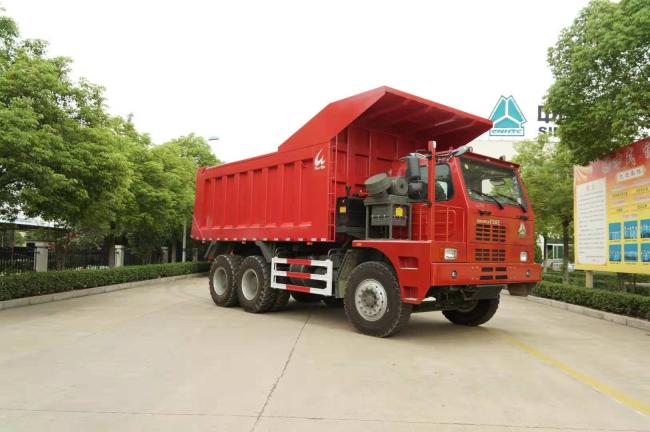

Used HOWO Truck Sinotruck 6X4 Dumper 371HP SecondHand Tipper Truck
1. HOWO 30 TONS 6X4 Dump Truck Main Specifications:(Configuration can be changed as required)
| MAIN DESCRIPTION | ||||
| Overall Dimension | 8545mm*2496mm*3350mm (L*W*H) | |||
| Payload | 25-30ton | Curb Weight | 12500kg | |
| Front Overhang | 1500mm | Rear Overhang | 1870mm | |
| Wheelbase | 3825mm +1350mm | |||
| CHASSIS | ||||
| Chassis Brand | SINOTRUK HOWO | |||
| Driving Type | 6x4 | |||
| Cab | HW76, left hand drive, air-conditioner, one bed | |||
| Engine and Power | Brand: SINOTRUK, diesel engine, 336hp (247kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard |
|||
| Steering | ZF8098, hydraulic steering with power assistance | |||
| Transmission | HW15710, 10 forward speeds and 2 reverse | |||
| Clutch | Model: 430, diaphragm clutch | |||
| Front Axle | HF9, load capacity 9 ton, drum brake | |||
| Rear Axle | HC16 tandem axle, load capacity 13000kg x2, ratio 5.73 | |||
| Tire | 12.00-20, 11units including 1 spare tire | |||
| CARGO BODY | ||||
| Inside Dimension | 5600mm*2300mm*1500mm(L*W*H) | |||
| Hydraulic Cylinder | Ventral T-type lift system | |||
| Steel sheet thickness | Floor 8mm, side wall 6mm | |||
| Tailgate | One-piece tailgate with upper articulation, safety lock system | |||
