CE Point Of Care Analyzer With Little Blood Sample / Analyzer For Lab And Clinic
Point of Care Analyzer With Little Blood Sample / Analyzer For Lab and Clinic
Preparation:
1 Preparing a reagent disc
a Take a reagent disc from refrigerator
b Place reagent disc with sealed pounch in room temperature for 20 minutes.

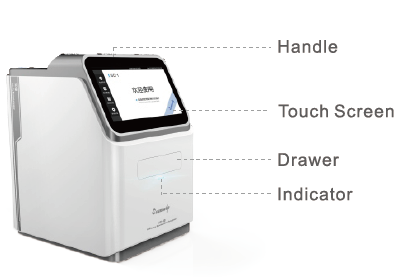

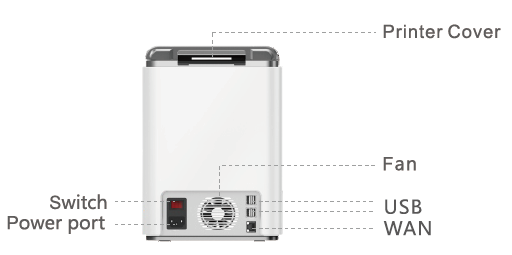

Overview:
Specification:
| Sample Type | Anti-coagulation whole blood, serum, plasma |
| Sample Volume | 100(90-120)ul |
| Bar Code | Two-dimensional bar code |
| Testing Time | 12 minutes / disc |
| Testing Principle | Absorption spectroscopy, transmission turdimetry |
| Testing Method | End point, kinetic, fixed time, turbidimetry |
| Temperature | 37℃ ± 0.3℃ |
| QC & Calibrate | Real time fully-automatic |
| Storage | About 500,000 results |
| Printer | Built-in thermal printer |
| Connectors | 4 USB, 1 LAN port |
| Weight | 4.2 Kg of the analyzer, 0.6 Kg of power adapter |
| Size | 315*375*475 mm |
| Order code | A00128000EH0 |
| Power supply | AC100V-240V, 50-60Hz |
| Display | Android 7.0 inch 800*480, multi-point capacitive touch screen, multilingual choice |
| Light Source | 12V/20W, halogen tungsten lamp’s life span is over 2500 hours |
| Power | Output:15, 7.0a, 150W MAX |
2 Treating blood sample
Dispense the whole blood sample into the lithium heparin collection tubes and close the lid.
3 Mixing well
Method 1: Turn tube upside down slightly 3-5 times(high volume)
Method 2: Flick the tube slightly 3-5 times (low volume)
Running a test:
1. Turning on the analyzer
Connect the outlet and analyzer through power adapter, turn on the switch, wait for booting until showing home screen.
2. Dispensing the sample
a Tear the pounch and take out the disc
b To take out 100ul blood sample by pipette
c Introduce the smaple into the disc through sample port
3. Inserting disc and starting test
Click "Prepare Analysis"
The drawer opened and insert disc
Click "Start Test"
The drawer closed and start testing
4. Printing out
The test will be finished in 12 minutes and then the test report will print out automaticlly.
Analytes:
| Analyte | General Chemistry Kit | Health Check Kit | Liver Function kit | Renal Function Kit | Electrolyte Kit | Lipid Kit | Cardiac Kit |
| ALB | √ | √ | √ | √ | |||
| ALP | √ | √ | |||||
| ALT | √ | √ | √ | √ | |||
| AMY | √ | √ | √ | ||||
| AST | √ | √ | √ | √ | √ | ||
| Ca | √ | √ | √ | ||||
| CHE | √ | ||||||
| Cl- | √ | ||||||
| CK | √ | √ | |||||
| CREA | √ | √ | √ | ||||
| GLU | √ | √ | √ | √ | |||
| GGT | √ | √ | |||||
| K+ | √ | ||||||
| HDL | √ | ||||||
| Mg2+ | √ | ||||||
| Na+ | √ | ||||||
| PHOS | √ | √ | √ | ||||
| TBA | √ | ||||||
| TB | √ | √ | √ | ||||
| TC | √ | √ | |||||
| CO2 | √ | √ | |||||
| TG | √ | √ | |||||
| TP | √ | √ | √ | ||||
| UA | √ | √ | √ | ||||
| UREA | √ | √ | √ | ||||
| HBDH | √ | ||||||
| LDH | √ | ||||||
| GLOB* | √ | √ | √ | ||||
| U/C* | √ | √ | √ | ||||
| A/G* | √ | √ | √ | ||||
| LDL* |
View more, pls click the website: www.seamaty.cn
