54V 60Ah UPS Battery Pack Li NCM Material Polymer Battery With IP 65 Case
Price:
Negotiable
MOQ:
1 PACK
Delivery Time:
15 days
Brand:
VICT
Product Description
UPS Battery Pack , 54V 60Ah Li NCM Polymer Battery , IP 65 Case
Parameter of Lithium Battery Pack
| Item | Rating | Note |
| Battery Model | VS5460NCM | 15S2P |
| Battery pack description | 54.6V 60Ah Li-NCM battery pack | PVC Heat Shrink |
| Cell Type and config | VS20P | |
| BMS description | PCB type BMS | Standard BMS which offer basic protection |
| Battery Pack Dimension (L*W*H) | 476*275*95mm MAX | Without outer case |
| Battery Pack Weight | ≤ 21 kg | The whole pack weight |
| Rated Capacity | ≥ 60 Ah | (0.2C Discharge, 23°C±5 ) |
| Rated Voltage | 54.6 V | |
| End of Discharging Voltage | 45V | |
| End of Charging Voltage | 63V | |
| Nominal Charge Current | ≤ 12 A | |
| Nominal Discharge Current | ≤30 A (0.5C, 23°C±5) |
Cell Dimension
| Marking | Description | Dimension |
| T | Thickness | 8.0mm max |
| W | Width | 156.0mm max |
| L | Height | 241.0mm max. |
| A | Tab length | 20±1.0mm |
| B | Tabs distance | 78±1.5mm |
| C | Tab width | 40±0.1mm |
| E | Tab thickness | 0.30±0.01mm |
| Cap | Capacity | 30Ah |
| Imp | Internal resistance | 5mΩ (Max) |
| V | Voltage | 3.83～3.96V |

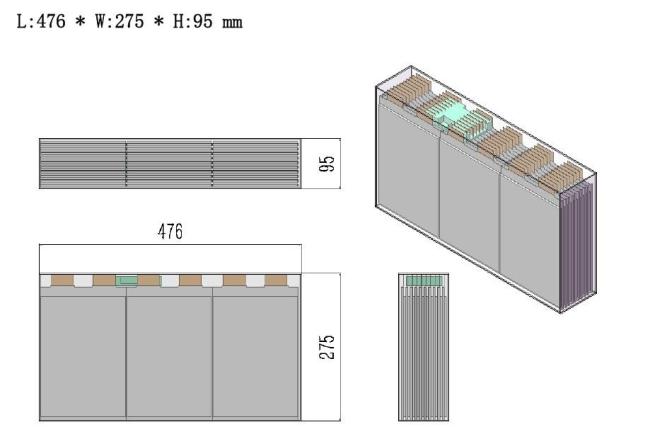

Battery Pack Dimension
Why we choose flexible packaging lamination?
- Internal defects can be exposed
- Spherical heat dissipation
- Slight bending of electrodes can be accepted
- PP packaging is safer than metal or plastic packaging
- The increment of thickness can be accepted
Protection Board Electrical Properties
| ITEM | MIN | TYP | MAX | ERROR | UNIT | |
| Battery Gas | 3.7V Polymer lithium battery | |||||
| Battery Link | 2P15S | |||||
| Loop capability | ||||||
| Input Charging Voltage | 63 | ±1% | V | |||
| Input Charging Current | ≦15 | A | ||||
| Output Discharging Voltage | 41.25 | V | ||||
| Continuous Output Discharging Current | ≤30 | A | ||||
| Ambient Condition | Operating Temperature | -10 | 25 | 60 | ℃ | |
| Humidity (No Water-Drop) | 0% | 90% | RH | |||
| Storage Condition | Temperature | -20 | 45 | ℃ | ||
| Humidity (No Water-Drop) | 0% | 90% | RH | |||
| Protection Parameters (for Individual Cell). | ||||||
| Over-Charge Voltage Protection (OVP) | 4.25 | V | ||||
| Over-Charge Voltage Protection Release (OVPR) | 4.15 | V | ||||
| Over-Discharge Voltage Protection (UVP) | 2.8 | V | ||||
| Over-Discharge Voltage Protection Release (UVPR) | 2.9 | V | ||||
| Over-Current Discharge Protection (OCDP) | 50 | A | ||||
| Over-Current Protection Delay Time (OCPDT) | 10 | mS | ||||
| Over-Discharge Protection Release | Charging or Release load | |||||
| Over-Current Discharge Protection Release | Charging or Release load | |||||
| Short circuit current protection | Enable | |||||
| Short circuit current protection delay time | 100 | 600 | uS | |||
| Short circuit protection Release | Release load | |||||
| Balance Mode | Resistance Balancing | |||||
| Idle mode | ≤30 | uA | ||||
| Main loop electrify resistance MOS-RDS | ≤60 | mΩ | ||||

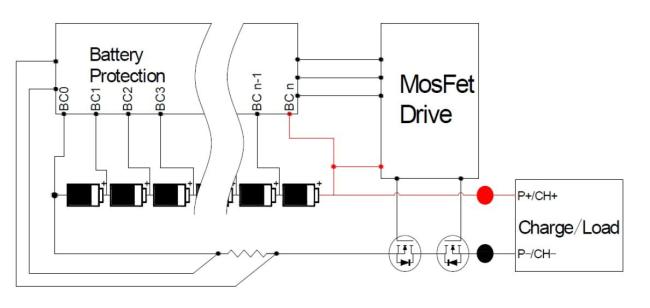

Battery pack circuit wiring diagram
Battery Cell Safe Test
Factory Review
Packing
UN marked packaging
Application
1. LED lighting
2. Solar storage system
3. UPS backup
4. Lawn mower
