Backflushable 69MM 6.5M2 PHFZ Pleated Power Plant Filter Cartridge
PHFZ Series Pleated Filter Cartridge

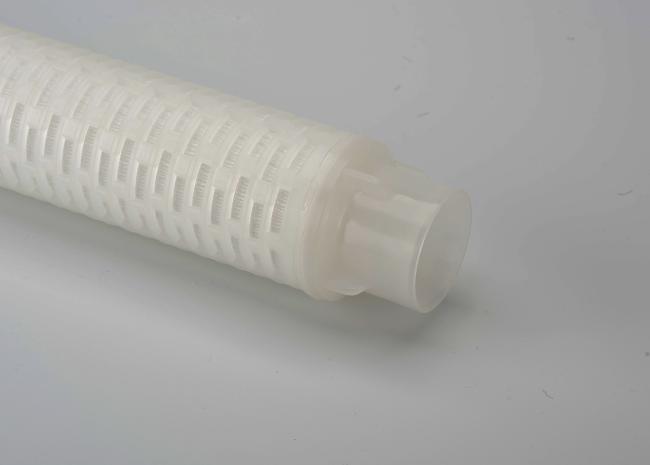

PHFZ Series pleated filter cartridge is backflushable pleated filters, designed for iron removal in condensate with or without resin pre-coat in power plant. According to the structure, it can be divided into three types: PHFZ-I (7 parts), PHFZ-II (2 parts) and PHFZ-III (4 parts). The PHFZ-II (4+3) is 40" and 30" welded, with integral cage outer diameter of φ69.
Material Constructions
| Filter Media | Polypropylene (PP) |
| Cage/Core/End cap | Polypropylene (PP) |
| Accessories (nut, screw) | SS304 |
Performance
| Maximum Operating Temperature | 85℃ |
| Maximum Operating Differential Pressure | 3.0bar/65℃ |
| Filtration Area | 6.5㎡ |
| Flow Rate |
3.5-4.5m3/h(Design) 3.9m3/h(Recommend) |
| Inlet water quality | ＜2000ppb |
Backwash water or gas: Under the pressure of 1.36-2.1bar, the backwash water of each filter cartridge is 0.45-0.65m3/h, backwash gas 3.4-5m3/h, can achieve the ideal effect.
600MW supercritical units and 1000MW ultra-supercritical units, respectively recommended use 4μm and 1μm 70" filter cartridge, when debugging recommend 10μm filter cartridge for start-up.
Ordering Information
PHFZ PP 0500 70 III Z2 W
| Series | Media | Micron | Length | Structure | Connection Thread | End Tread |
| PHFZ | PP=Polypropylene |
0100=1.0μm 0400=4.0μm 1000=10μm |
60=60" 70=70" |
I=7Part(φ69) II=4+3(φ65) III=3+1(φ69) |
Z1=1 1/2"-12 Z2=M33×1.5 |

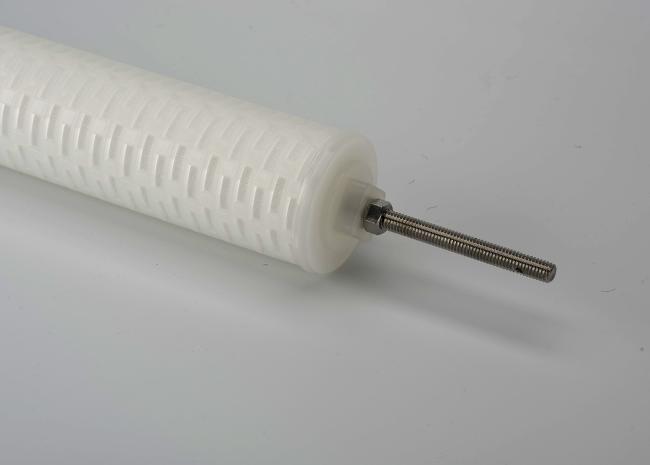

W1=M8 W2=M10 W3=M6 W4=3/8 |
