Custom Seamless Titanium Tube Grade 2 25 X 0.7 X 8000MM For Heat Exchangers

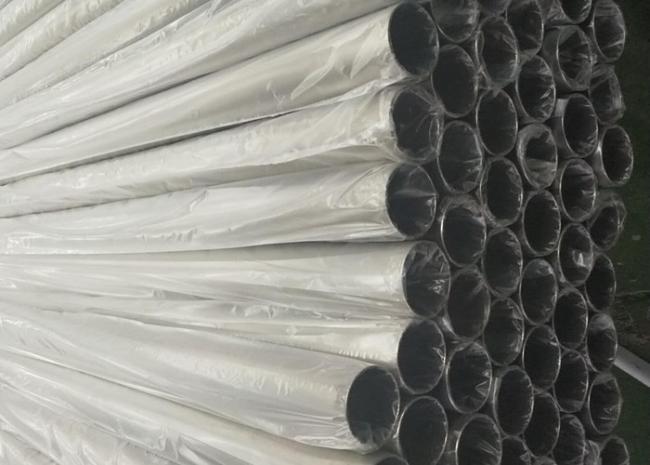

ASME SB338 Titanium Gr.2 Welded Titanium Tubes 25 X 0.7 X 8000MM for Heat Exchangers
Spezilla produces titanium welded tubing in accordance with ASTM/ASME standards in Grades 1 and 2 for construction of titanium heat exchanger equipment. Material is produced to customer order requirements in a diameter range of .75” (19.05mm) to 1.50” (38.1mm) OD and wall thickness between .020” (0.5mm) and .070” (1.78mm). Additional specification such as DIN, PED and customer specific specifications can be quoted following a review by the quality assurance and process engineering departments.
Welded titanium tubing is supplied to the latest revisions of ASTM B 338 & ASME SB 338 specifications, UT and Eddy-Current Tested.
Description:
| Item Code: | SPW-G-GR.2 |
| Tube OD.: | 6.00MM - 38.10MM |
| Wall: | 0.50MM - 2.0MM |
| Length: | 6000MM - 12000MM |
| Material: | Titanium Gr.2 |
| Standard: | ASTM B338, ASME SB338 |
| Finish: | Welded |
| Type: | Welded |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
Chemical composition reference analysis (as weight %)
| ASTM Grade | Nominal Composition |
|---|---|
| Grade 1 | Ti |
| Grade 2 | Ti |
| Available Grades |
|---|
| Welded tube according to ASTM B 338/ASME SB 338 Grade 1, 2, 3, 7, 12 & 16 |
| Welded Tube | |
|---|---|
| Outside Diameter | |
| 0.47″ – 2.37″ | 6.0 mm – 38.1 mm |
| Wall Thickness | |
| 0.016″ – 0.098″ | 0.4 mm – 2.5 mm |
| Length | |
| 59”-984” | 1500mm – 26000mm |
Available Tube Product Forms:
Straight Length.
Coiled.
Typical Applications:
Titanium has become the most efficient and cost-effective material for an increasing number of applications. It offers unmatched corrosion resistance combined with high mechanical properties. Moreover, our titanium welded tubes can be manufactured in very thin-wall gauges saving both on cost and weight.
As a world leader in welded titanium tubing, Spezilla has the experience and expertise to bring the highest level of technical assistance, by helping to integrate titanium tubes within a customer’s design. In addition we have secure access to superior titanium strip with a capacity to meet the needs of the market.
Quality Assurance:
Spezilla's Titanium tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Manufacturing Specifications:
ASTM B338
ASME SB338
Also individual customer specifications.
