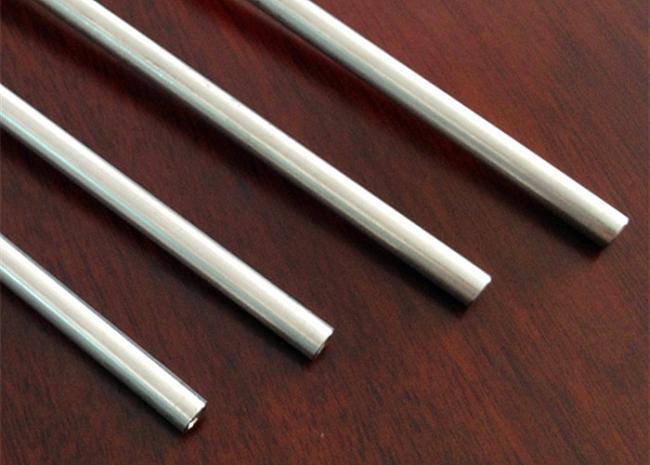

Welded Automotive stainless steel welded tubes 1.4301 EN10217-7 10 X 1.0MM For Automotive
Welded Automotive stainless steel welded tubes 1.4301 EN10217-7 10 X 1.0MM For Automotive
Description:
Stainless steel types 1.4301 and 1.4307 are also known as grades 304 and 304L respectively. Type 304 is the most versatile and widely used stainless steel. It is still sometimes referred to by its old name 18/8 which is derived from the nominal composition of type 304 being 18% chromium and 8% nickel.
Type 304 stainless steel is an austenitic grade that can be severely deep drawn. This property has resulted in 304 being the dominant grade used in applications like sinks and saucepans.
Type 304L is the low carbon version of 304. It is used in heavy gauge components for improved weldability. Some products such as plate and pipe may be available as “dual certified” material that meets the criteria for both 304 and 304L.
304H, a high carbon content variant, is also available for use at high temperatures.
| Item Code: | SPW-EN-1.4301 |
| Tube OD.: | 8MM |
| Wall: | 1.0MM |
| Length: | 6000MM |
| Material: | 1.4301 |
| Standard: | EN10217-7 / ASTM A249 / ASME SA249 |
| Finish: | BA / Bright Annealed. |
| Type: | Welded |
| Certification: | ISO9001 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Sleeved, Wooden Boxed |
1.4301 Stainless Steel / Spec: EN 10088-3:2005
| Chemical Element | % ( Weight ) |
| Carbon (C) | 0.0 - 0.07 |
| Chromium (Cr) | 17.50 - 19.50 |
| Manganese (Mn) | 0.0 - 2.00 |
| Silicon (Si) | 0.0 - 1.00 |
| Phosphorous (P) | 0.0 - 0.05 |
| Sulphur (S) | 0.0 - 0.03 |
| Nickel (Ni) | 8.00 - 10.50 |
| Nitrogen (N) | 0.0 - 0.11 |
| Iron (Fe) | Balance |
| Mechanical Property | Value |
| Proof Stress | 190 Min MPa |
| Tensile Strength | 500 to 700 MPa |
| Elongation A50 mm | 45 Min % |
| Hardness Brinell | 215 Max HB |
Available Tube Product Forms:
Straight.
Coiled.
Seamless.
Seam welded and cold redrawn.
Seam welded, cold redrawn and annealed.
Quality Assurance:
Spezilla's welded precision stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Applications:
Moisture separator reheaters
Feedwater tubes
Heat exchangers
Typical Manufacturing Specifications:
ASTM A213
ASTM A249
ASTM A269
ASTM A270
EN10217-7
EN10296-2
EN10216-5
Also individual customer specifications.
