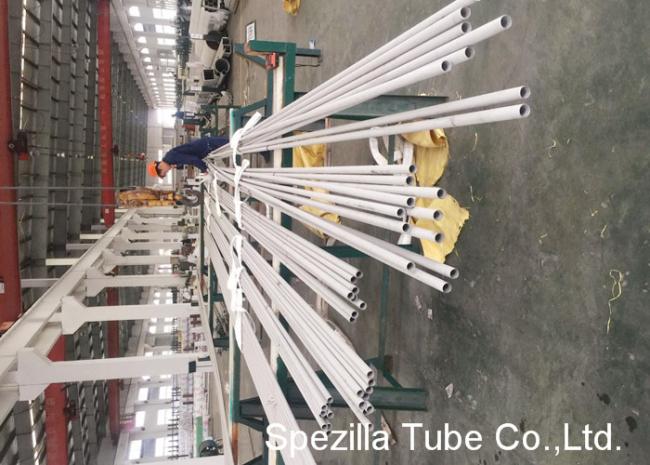

EN10204 3.1 Precision Seamless Stainless Steel Tube 1'' X 0.083'' X 20FT
EN10204 3.1 Stainless Steel Seamless Tube ASTM A213 TP304/304L 1'' X 0.083'' X 20FT
Spezilla is a leading manufacturer and exporter of seamless stainless steel tubes, we have been exporting our tubes to more than 20 coutries since 2008. We are ISO9001:2008 certified manufacturer with very strcit quality control procedures. Spezilla is a good choice for your seamless stainless steel requirements.
Spezilla supplies seamless stainless steel tube per ASTM A 213, ASTM A 269 and ASTM A 511. We supply common grades of stainless steel such as 304, 304L, 316, and 316L in standard tube sizes and wall thicknesses, as well as less common austenitic stainless steel tubing in 304H, 309S, 310S, 317L, 321H, 347H. Most sizes of seamless stainless steel tube can be cut to exact sizes. Non standard sizes can be made to order. Contact our team today and tell us your exact seamless stainless steel tubie requirement.
Outside Diameter: 6.00 mm to 38.1mm
Wall Thickness: 0.50 mm to 3.00 mm
Grades: TP 304/L/H, TP 316/L/H/Ti, TP 310/H/L/S, TP 317/L, TP 321/H, TP 347/H, TP 405, TP 409, TP 410, TP 430, UNS S 31500, 31803, 32205, 32750, 32760
Description:
| Item Code: | SPS-304/304L |
| Tube OD.: | 1/4'' - 1.5'' |
| Wall: | 0.028'' - 0.120'' |
| Length: | 20FT |
| Material: | 304/304L |
| Standard: | ASTM A213 ASTM A269 |
| Finish: | AP / Annealed and Pickled. |
| Type: | Seamless Cold Drawn |
| Certification: | ISO9001 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Sleeved, Wooden Boxed |
| 304 | 304L | |
|---|---|---|
| Typical Chemical Requirements | ||
| Carbon Max | 0.08 | 0.035 |
| Manganese Max | 2.00 | 2.00 |
| Phosphorous Max | 0.040 | 0.040 |
| Sulfur Max | 0.030 | 0.030 |
| Silicon Max | 1.0000 | 1.00 |
| Chromium Range | 18.0-20.0 | 18.0-20.0 |
| Nickel Range | 8.0-11.0 | 8.0-13.0 |
| Mechanical Properties | ||
| Tensile Strength Min | 75 ksi | 75 ksi |
| Yield Strength Min | 30 ksi | 30 ksi |
| Elongation Min in 2" | 35% | 35% |
Available Tube Product Forms:
Straight.
Coiled.
Typical Applications:
Seamless bright annealed stainless steel tubing is used for many applications that require resistance to high pressures, high temperatures, and corrosive environments. These include, but are not limited to: petrochemical, gas, nuclear, food and beverage, and chemical plants. Various wall thicknesses are available to suit a range of pressure requirements, and several different finishes are available to achieve the desired aesthetic.
Quality Assurance:
Spezilla's seamless stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Manufacturing Specifications:
ASTM A213
ASTM A269
ASTM A270
EN10216-5
Also individual customer specifications.
