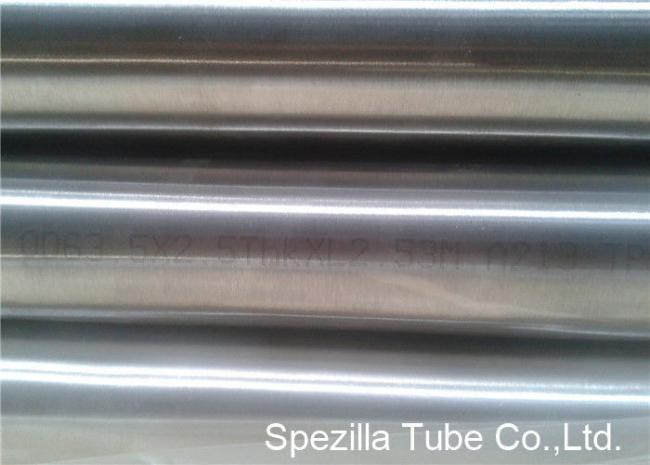

Rustproof Stainless Steel Sanitary Tubing , High Pressure Stainless Steel Pipe
Welded Stainless Steel Sanitary Tubing A269/A270 TP316L OD2.5'' X 0.065'' X 20FT Polished
Spezilla Tube Co.,Ltd. is one of the leading service providers for ASTM A270 stainless steel sanitary tubings for more than 10 years. We understand the importance of surface finish & Weld Bead Quality in piping system & provide the best solution to end users/OEMs for piping systems. We have set up world class manufacturing facilities for stainless steel sanitary tubings in China under the brand name of Spezilla.
Surface Polish:
Spezilla provide flexible polish selection in our stainless steel sanitary tubing. We offer bright annealed finish, mechanical polish finish ranging from #180~400. Electropolish is also available upon request.
Test Procedures:
Our stainless steel sanitary tubings are carefully sampled and inspected through series of dedicate testing procedures, including material verification, dimension check & surface roughness measurement etc.
Product Marking:
1. Material Type
2. Dimension
3. Heat Number
Packaging:
All finished stainless steel sanitary tubings will be packed to suit the special conditions for international deliveries.
Applications:
1. Beverage/Brewery, Food & Dairy
2. Pharmaceutical/Biopharmaceutical
Spezilla is a global supplier of stainless steel sanitary tube for the Brewery, Food, Dairy and Pharmaceutical Industries. Spezilla offers tubes from ½” to 8” OD in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra.
Description:
| Item Code: | SPW-S-316L |
| Tube OD.: | 25.40MM - 101.60MM |
| Wall: | 1.65MM - 2.11MM |
| Length: | 6096MM. 20FT |
| Material: | 316L |
| Standard: | ASTM A270 |
| Finish: | Bright Annealed & ID/OD Polished. |
| Type: | Welded & Polished |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
| Stainless Steel Sanitary Tube Specifications | ||
| O.D. | WALL THICKNESS | STOCK LENGTHS |
| 1/2'' | 0.065'' | 20' |
| 3/4'' | 0.065'' | 20' |
| 1'' | 0.049'' | 20' |
| 1'' | 0.065'' | 20' |
| 11/2'' | 0.049'' | 20' |
| 11/2'' | 0.065'' | 20' |
| 2'' | 0.049'' | 20' |
| 2'' | 0.065'' | 20' |
| 21/2'' | 0.065'' | 20' |
| 3'' | 0.065'' | 20' |
| 4'' | 0.065'' | 20' |
| 4'' | 0.083'' | 20' |
| 6'' | 0.083'' | 20' |
| 6'' | 0.109'' | 20' |
| 8'' | 0.109'' | 20' |
| 10'' | 0.134'' | 20' |
| 12'' | 0.134'' | 20' |
| 14'' | 0.134'' | 20' |
Straight Length.
Typical Applications:
Our sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270, 3A standards, and most user specifications.
Quality Assurance:
Spezilla's stainless steel sanitary tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Manufacturing Specifications:
ASTM A270
ASTM A269
Also individual customer specifications.
