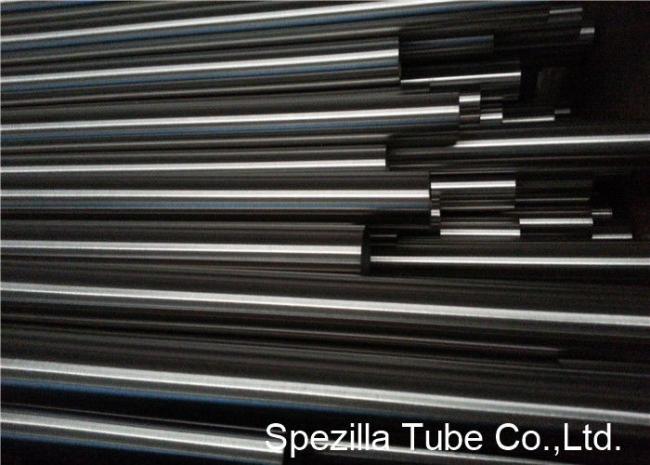

DIN 11850 1.4301 SS Sanitary Tubing ID Pickled OD Polished DN10 - DN200
DIN 11850 EN10357 1.4301 Stainless Steel Sanitary Pipe ID Pickled OD Polished DN10 - DN200
Spezilla manufactures stainless steel sairy tubes acc. to EN10357 & DIN 11850 standards, High surface quality guarantees the required hygienic ety. The in-house surface treatment department provides the optimal finish according to your requirements.
1. Internal surface Ra<0.8μm, internal weld bead Ra<1.6μm.
2. Bead rolled Dairy Tube for hygienic applica ons
3. Manufactured to EN10357 hygienic standard
4. Available in grades 304 and 316L
5. Dull Polished external 180—220 grit
6. Available in sizes from 1/2” - 4” OD
7. 1.5mm Thick from 1/2” - 3”, 2mm thick for 4”
8. Supplied un-annealed for maximum value
9. Available with 3.1 mill cer cates
10.Supplied in accordance with our ISO quality system
Description:
| Item Code: | SPW-S-1.4301 |
| Tube OD.: | 18MM - 203.20MM |
| Wall: | 1.5MM - 2.00MM |
| Length: | 6000MM |
| Material: | 1.4301 |
| Standard: | EN10357 DIN 11850 |
| Finish: | Bright Annealed & ID/OD Polished. |
| Type: | Welded & Polished |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
| Material | 304 (1.4301) or 304L (1.4307) 316L (1.4404) others on request |
| Dimensions DIN | DN10 - DN200 Series A and series B |
| Dimensions ISO | DN10 - DN200 Series C |
| Dimensions SMS and OD | 1" - 4" Series D |
| Inner surface | Outer surface | |
| CC |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled W2(b) and passivated |
| CD |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
| BC |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled and passivated or bright annealed W2A(b), W2R(b), l1g or l2g |
| BD |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
Our sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270, 3A standards, and most user specifications.
Straight Length.
Typical Applications:
Quality Assurance:
Spezilla's stainless steel sanitary tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Manufacturing Specifications:
ASTM A270
ASTM A269
Also individual customer specifications.
