Annealed Stainless Steel Tubing , Stainless Steel Seamless Pipe For Boilers

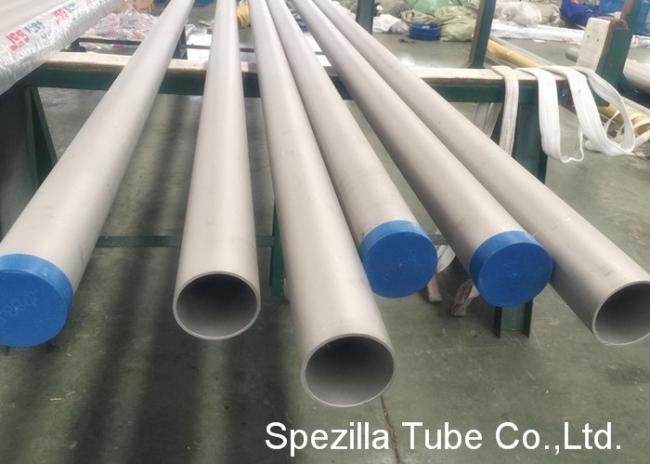

ASTM A213/A213M TP316L Annealed Seamless Stainless Steel Tube for Boilers, Superheaters and Heat Exchangers
ASTM A213 / A213M ASME SA213 covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes.
ASTM A213 / A213M ASME SA213 Stainless Steel tubes Grades TP304, TP304L, TP304H, TP309S, TP309H, TP310S, TP310H, TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP348, TP348H, TP444…
ASTM A213 / A213M ASME SA213 tubes shall be made by the seamless process and shall be either hot-finished or cold finished as specified.
Standard:
ASTM A213/ A213M, ASME SA213.
Description Name:
ASTM A213 seamless stainless steel tubes, ASTM A213 stainless steel pipes, TP316/TP316L stainless tubes. Seamless stainless tubes, stainless tubes.
Description:
| Item Code: | SPS-TP316L |
| Tube OD.: | 6.00 - 38.10MM |
| Wall: | 0.50 - 3.00MM |
| Length: | 6000MM - 25000MM |
| Material: | AISI 316L |
| Standard: | ASTM A213 / ASME SA213 |
| Finish: | BA / Bright Annealed. AP / Annealed & Pickled. |
| Type: | Seamless Cold Drawn |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Sleeved, Wooden Boxed |
TP316L Seamless Stainless Steel Heat Exchanger Tube Chemical Composition:
| Elements | 316L (wt%) |
| C / Max. | 0.035 |
| Mn / Max | 2.00 |
| P / Max | 0.045 |
| S / Max | 0.030 |
| Si / Max | 1.00 |
| Ni | 10.00 - 14.00 |
| Cr | 16.00 - 18.00 |
| Mo | 2.00 - 3.00 |
| Fe | Bal. |
| Cu | N/A |
| N | N/A |
TP316L Seamless Stainless Stainless Steel Tube Mechanical Property:
| Grade | Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Hardness (HRB) |
316L |
485 Min. |
≥170.00 |
≥35 |
≤90 |
Available Tube Product Forms:
Straight.
Annealed & Pickled.
Quality Assurance:
Spezilla's 304 seamless heat exchanger stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Applications:
Falling Film Evapotators
Condensers
Tube and Shell Heat exchangers
Typical Manufacturing Specifications:
ASME SA213
ASTM A213
ASTM A269
EN10216-5
Also individual customer specifications.
