1.4301 High Purity Stainless Steel Tubing DIN 11850 85 X 2.0MM OD Polished
1.4301 High Purity Sanitary Stainless Steel Tubing DIN 11850 85 X 2.0MM With OD Polished
Tube is manufactured welded-as-seam-less (WSL) according to the latest edition of EN10357 (previously DIN11850) with the specific purpose of servicing the food and beverage industries such as dairy and brewery companies in Europe and Southeast Asia.
High-Quality Sanitary Tubing That Meets DIN 11850 Standards
Aside from meeting 3-A standards, our stainless steel sanitary tubing also meets rigorous DIN standards.
Cut to size upon request, 236” standard length
Control the flow and direction of your hygienic fluids
For use in multiple industries and meets DIN 11850 standards
SPECS:
DIN 11850 Sanitary Stainless Steel Tubing
304L grade
DIN Type
| Execution | Specifications | Pre-Materials | Surface Finish (max) | ||
|---|---|---|---|---|---|
| CC | DIN11850 EN10357 |
1.4301 1.4404 |
ID | Welded as Seam-Less | Unpolished |
| OD | Pickled | Unpolished | |||
| CD | DIN11850 EN10357 |
1.4301 1.4404 |
ID | Welded as Seam-Less | Unpolished |
| OD | Pickled & Polished | < 0.8 μm | |||
| BC | DIN11850 EN10357 |
1.4301 1.4404 |
ID | Welded as Seam-Less | Bright Annealed |
| OD | Bright Annealed | Unpolished | |||
| BD | DIN11850 EN10357 |
1.4301 1.4404 |
ID | Welded as Seam-Less | Bright Annealed |
| OD | Polished | < 0.8 μm | |||
| MP | DIN11850 EN10357 |
1.4301 1.4404 |
ID | < 20 RA | < 0.5 μm |
| OD | < 32 RA | < 0.8 μm | |||
Descriptions:
| Item Code: | SPW-EN10357-A-4301-100 |
| Tube OD.: | 104.00MM |
| Wall: | 2.00MM |
| Length: | 6000MM |
| Material: | 1.4301 |
| Standard: | EN10357 Series A (DIN 11850 Reihe 2) |
| Finish: | CC, CD, BC, BD |
| Polish: | Mechanical Polished |
| Type: | Welded |
| Certification: | 3A - Food / Dairy Grade |
| Mill Test Certificate: | EN10204 3.1 |

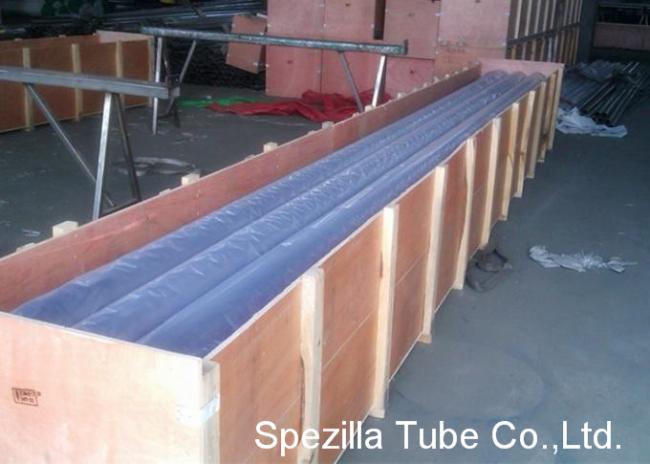

| Packing: | Sleeved, Ends Capped, Wooden Boxed |
Chemical Compositions:
| Elements | 1.4301 (wt%) |
| C / Max. | 0.08 |
| Mn / Max | 2.00 |
| P / Max | 0.045 |
| S / Max | 0.030 |
| Si / Max | 1.00 |
| Ni | 8.00 - 10.50 |
| Cr | 17.00 - 19.50 |
| Mo | N/A |
| Fe | Bal. |
| Cu | N/A |
| N | 0.11 |
Mechanical Properties:
| Grade | Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
1.4301 |
500 - 700 |
≥195 |
≥40 |
Quality Assurance:
1.100% PMI / SPECTRO CHEMICAL ANALYSIS TESTS
2.100% DIMENSION TESTS & 100% VISUAL EXAMINATION
3. TENSION TEST, FLARING TESTS(FOR SEAMLESS TUBE/PIPE)/FLANGE TESTS(FOR WELDED TUBE/PIPE), HARDNESS TEST, REVERSED FLATTENING TEST(FOR WELDED TUBE/PIPE), FLATTENING TEST (FOR SEAMLESS TUBE/PIPE)
4.100% HYDROSTATIC TEST/100% NON-DESTRUCTIVE TESTS
5. ROUGNESS TESTS
Notes : All The Tests And Inspection Need To Provide With Reports According To Standard And Test Results
A. Mtc (Material Test Certification) According To En10204/3.1 Or En 10204/3.2
B. Raw Material Certification
C. All The Test & Inspection Reports As Per Po And Standards
D. Heat Treatment Report
E. Shipping Notification Before Shipment
F. Quality Warranty Letter
Applications:
Spezilla's EN10217-7 DIN 11850 EN 10357 welded high purity stainless steel sanitary tubings are applicable to a wide range of manufacturing industries as following:
1. Food Processing & Beverage
2. Dairy
3. Wine & Brewery
4. Cosmetic
5. Biotechnolgy, Pharmaceutical
