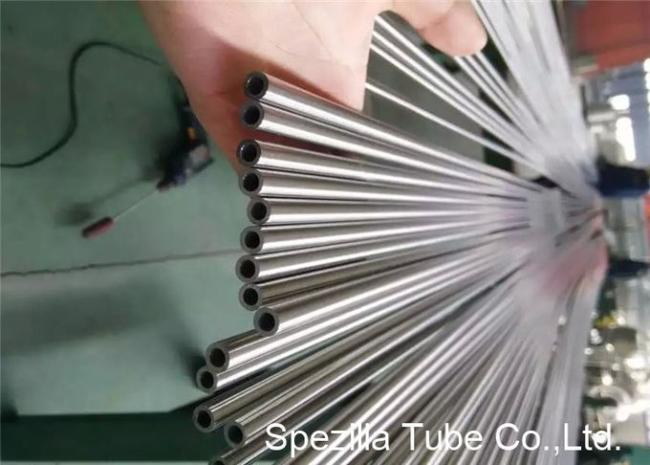

Cold Drawn Seamless Stainless Steel Tubing ASTM A269 A213 20FT Length
Cold Drawn Seamless Stainless Steel Tubing ASTM A269 A213 20FT Length
Description:
Spezilla carries an extensive stock of seamless precision tubes for the use in instrumentation. That controls flow, measuring and analyze application with smooth bright annealed surfaces and with strict requirements to deviation in diameter and wall thickness. Reducing the risk of leakages when connecting tubes with single or twin ferrule couplings. Our seamless stainless steel instrumentation tubings are suitable for use with couplings from all well known fittings producers in world.
Tube Standards:
ASTM A213
ASTM A249
ASTM A269
Typical Applications:
1. Control lines
2. Process engineering
3. Umbilicals
4. High Performance Liquid Chromatography (HPLC)
5. Condensers
6. Medical implants (including Pins, screws and implants)
7. Semiconductors
8. Heat exchangers
Technical Data:
Stainless Steel Instrumentation Tubing
| 304 | 304L | |
|---|---|---|
| Typical Chemical Requirements | ||
| Carbon Max | 0.08 | 0.035 |
| Manganese Max | 2.00 | 2.00 |
| Phosphorous Max | 0.040 | 0.040 |
| Sulfur Max | 0.030 | 0.030 |
| Silicon Max | 1.0000 | 1.00 |
| Chromium Range | 18.0-20.0 | 18.0-20.0 |
| Nickel Range | 8.0-11.0 | 8.0-13.0 |
| Mechanical Properties | ||
| Tensile Strength Min | 75 ksi | 75 ksi |
| Yield Strength Min | 30 ksi | 30 ksi |
| Elongation Min in 2" | 35% | 35% |
| 316 | 316L | |
|---|---|---|
| Typical Chemical Requirements | ||
| Carbon Max | 0.08 | 0.035 |
| Manganese Max | 2.00 | 2.00 |
| Phosphorous Max | 0.040 | 0.040 |
| Sulfur Max | 0.030 | 0.030 |
| Silicon Max | 1.0000 | 1.00 |
| Chromium Range | 16.0-18.0 | 16.0-18.0 |
| Nickel Range | 11.0-14.0 | 10.0-15.0 |
| Molybdenum Range | 2.0-3.0 | 2.0-3.0 |
| Mechanical Properties | ||
| Tensile Strength Min | 75 ksi | 75 ksi |
| Yield Strength Min | 30 ksi | 30 ksi |
| Elongation Min in 2" | 35% | 35% |
Annealing:
Spezilla offers the following thermal treatment processes to produce customers' desired surface finish.
Bright Anneal: we utilize annealing atmospheres, which create surface finishes that are free of heavy oxides or scales. The bright annealed final product has exceptional corrosion resistance and does not require post heat treatment pickling or grinding.
Open Air Anneal: Webco performs annealing in open air to create an oxidized surface finish. This oxide layer can either be left on the tubing, or it can be removed by grinding and polishing operations. The oxidized surface finish has been beneficial to some customers during forming of the tubing.
Grinding and Polishing:
Spezilla's manufacturing process includes the capability to grind and polish tube. These processes yield a tube with a smooth weld seam area and consistent tube body appearance.
