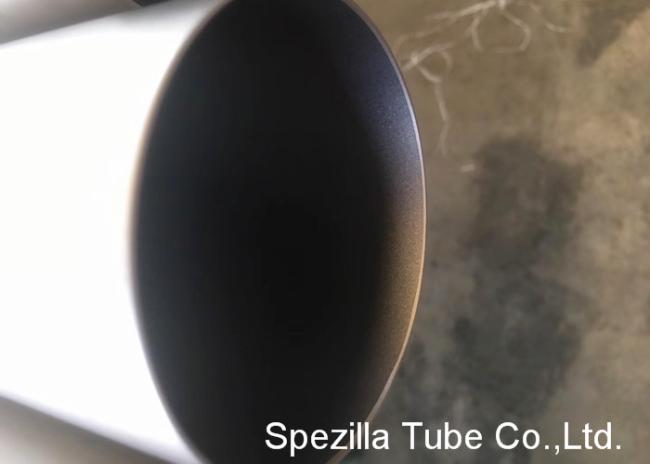

Industrial UNS R50400 Seamless Titanium Tube Grade 2 OD 12.7 X 1.2 X 6000MM
Welding Titanium Tubing ASTM B338 Grade 2 UNS R50400 OD 12.7 X 1.2 X 6000MM
Grade 2 (UNS R50400) is commercially pure titanium: it is used for corrosion resistance in the chemical and marine industries, and where ease of forming is needed. Weldability is good.
| Alloy | UNS | Description |
|---|---|---|
| TiGr7 | R52400 | Grade 7 is a commercially pure titanium grade very similar to Grade 2 except Grade 7 contains 0.2wt% palladium. This small palladium addition resists crevice corrosion at temperature below 480 Deg F and a pH>1. |
| TiGr2 | R50400 | Commercially Pure Grade 2 titanium is the work horse of the commercially pure Ti grades. It is slightly stronger than Grade 1, but equally as corrosion resistant in a wide variety of environments. |
Description:
| Item Code: | SPW-G-GR.2 |
| Tube OD.: | 6.00MM - 38.10MM |
| Wall: | 0.50MM - 2.0MM |
| Length: | 6000MM - 12000MM |
| Material: | Titanium Gr.2 |
| Standard: | ASTM B338, ASME SB338 |
| Finish: | Welded |
| Type: | Welded |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
Chemical composition reference analysis (as weight %)
| Products | Processing Standard | Grade | Size |
| Titanium Welded Tube, Pipe | ASME SB338, ASME SB862 | GR1, GR2, GR7, GR12 |
OD: (0.315”-48”) WT: (0.0197”-0.5”) Length: at random length |
| Density | 4.5 g/cm3 |
| Melting Point | 1665 °C (3030 °F) |
| Tensile Strength | Psi – 49900 , MPa – 344 |
| Yield Strength (0.2%Offset) | Psi – 39900 , MPa – 275 |
| Elongation | 20 % |
Available Tube Product Forms:
Straight Length.
Coiled.
Typical Applications:
Shell and tube heat exchanger, condenser, evaporator, pipeline, etc
Seawater desalination equipment
Bike rack
Marine pressure tube
Quality Assurance:
Spezilla's Titanium tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Manufacturing Specifications:
ASTM B338
ASME SB338
Also individual customer specifications.
