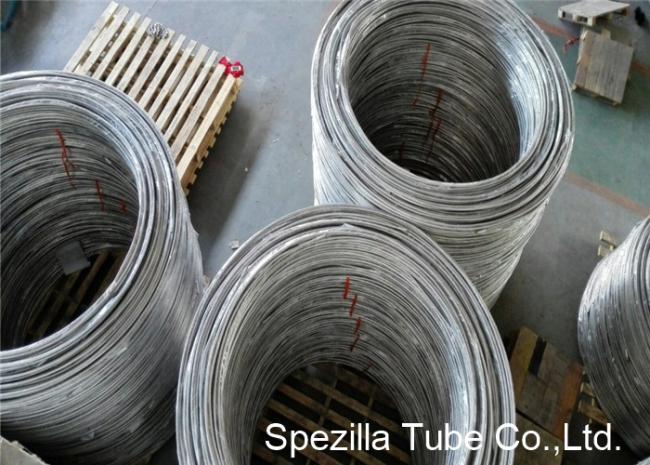

Custom Round stainless steel mechanical Coiled Tubing Tig Welding 6.35mm 1/4 Inch
Custom Round stainless steel mechanical Coiled Tubing Tig Welding 6.35mm 1/4 Inch
Spezilla's high quality specialty stainless steel tubing can be produced to meet customers' unique requirements in a multitude of industries/niches, including but not limited to the following applications:
Appliances
Beverage production
Boilers
Desalination
Feedwater heaters
Geothermal plants
Heat exchangers
Heat recovery steam generators
Instrumentation
Mechanical
Oil and gas
Pressure coil
Specialty automotive
Features:
In line annealed stainless steel tube, shiny and coiled; obtained by a constant treatment at 1100ºC in a controlled chamber.
Production process: TIG Welding and constant treatment at 1100ºC in a controlled chamber (hyper temper); only inert gases are used to extract corrosive agents both inside and outside the tube, in order to avoid any kind of corrosion during the chemical structural stabilization process of the stainless steel.
Size Range:
| OD | WT | |||||
| MM | INCH | MM | INCH | MM | INCH | MM |
| 6.35 | 0.035 | 0.889 | 0.049 | 1.24 | 0.065 | 1.65 |
| 7.94 | 0.035 | 0.889 | 0.049 | 1.24 | 0.065 | 1.65 |
| 9.53 | 0.035 | 0.889 | 0.049 | 1.24 | 0.065 | 1.65 |
| 12.7 | 0.035 | 0.889 | 0.049 | 1.24 | 0.065 | 1.65 |
| 15.88 | 0.035 | 0.889 | 0.049 | 1.24 | 0.065 | 1.65 |
| 19.05 | 0.035 | 0.889 | 0.049 | 1.24 | 0.065 | 1.65 |
| 25.4 | 0.035 | 0.889 | 0.049 | 1.24 | 0.065 | 1.65 |
Available Materials:
| Material Number | AISI | UNS (Unified Numbering System) |
Alloy |
| 1.3912 | K 93600 | ||
| 1.3981 | K 94610 | Alloy K | |
| 1.4301 | 304 | S 30400 | |
| 1.4306 | 304 L | S 30403 | |
| 1.4401 | 316 | S 31600 | |
| 1.4404 | 316 L | S 31603 | |
| 1.4410 | F 53 | S 32750 | Alloy 2507 |
| 1.4435 | 316 L | S 31603 | |
| 1.4438 | 317 L | S 31703 | |
| 1.4462 | F 51 | S 31803 | |
| 1.4466 | 310 MoLN | S 31050 | |
| 1.4501 | F 55 | S 32760 | |
| 1.4529 | 926 | N 08926 | Alloy 6 Mo |
| 1.4539 | 904 L | N 08904 | Alloy 904 L |
| 1.4541 | 321 | S 32100 | |
| 1.4547 | 254 SMO | S 31254 | Alloy 6 Mo |
| 1.4550 | 347 | S 34700 | |
| 1.4563 | N 08028 | Alloy 28 | |
| 1.4571 | 316 Ti | S 31635 | |
| 1.4749 | 446 | S 44600 | |
| 1.4762 | 446 | S 44600 | |
| 1.4828 | 309 | S 30900 | |
| 1.4835 | S 30815 | Alloy 253MA | |
| 1.4841 | 310 | S 31000 | |
| 1.4845 | 310 S | S 31008 | |
| 1.4876 | 800 | N 08800 | Alloy 800 |
| 1.4948 | 304 H | S30409 / S30480 |
