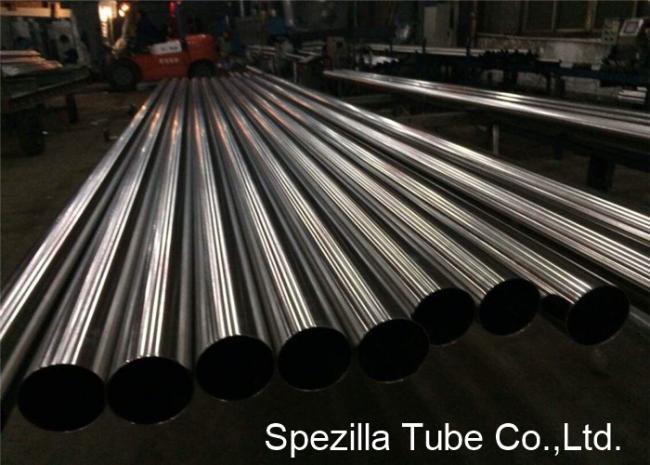

Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT

Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT

General Information:

ASTM A270 - Tubes for the food Industry

This specification applies to general tube and food / milk processing industry.

Available sizes :

Tube sizes range from 12.7 mm to 203.2 mm outside diameter.

Grades of Material :

304, 304L,316, 316L Stainless Steel

Manufacture :

Automatic tig welding with no addition of filler metal

Heat treatment :

Tube is not post weld heat treated except for Standards ASTM A269 & A249 where tube is annealed.

Mechanical Tests:

Weld Bead:

Weld bead rolled of stainless steel sanitary pipe.

Straightness:

Maximum of 1.0 mm / metre

End finish :

Sizes to 203.2 deburred both ends

Finish Internal :

Inside bead rolled, mechanical polished.

Finish External :

As welded condition (external weld bead removed).

May have forming, straightening & weld polish cross hatch marking.

Standard Polished equivalent to 320 Grit - typical Ra = 0.5µm to 0.8 µm

Packaging:

Polished Tube is individually plastic sleeved in a bundle with steel strapped cleats and plywood for forklift plate.

Traceability:

Controlled batch traceability from raw material to finished tube. For traceability purpose the tube is either inkjet marked or attached with label identifying sizes , batch & trace numbers.

Test certificate:

Raw material test certificates are available on request. EN10204 3.1 Certificate of Test of Finished Tube is provided for the tube dispatched under ASTM A249/ A269.
