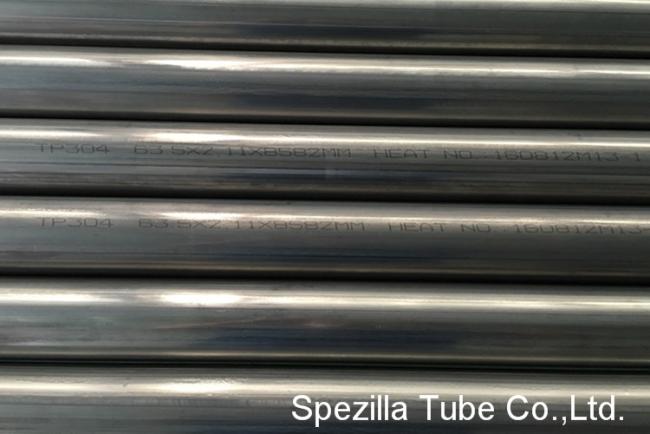

Size DN25 DN20 304 / 316 weldable steel tubing Not Annealed Dairy Finish DIN11850
Size DN25 DN20 304 / 316 weldable steel tubing Not Annealed Dairy Finish DIN11850
This product range provides a wide range of tubes with internal surface finishes that have a roughness average (Ra) of < 0.8 - 1.6 μ. Tubes in the hygienice range comply with DIN 11850.
Surface Polish:
Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.
Our Stainless Steel HygienicTube:
1. Complies with DIN 11850 to ensure maximum compatibility with your process system.
2.Wide range of tube OD sizes available to suit your application (see Table below).
3. Tube lengths cut to order for ease of shipping etc.
4. Fully annealed option to ensure ease of fabrication and manipulation if required.
5. Full certification provided on request thus providing full traceability.
Export Packaging:
As a final step to ensure purity standards, each tube is packaged using 2 mil poly sleeving and both ends are sealed using air tight end caps. Stainless steel sanitary pipes are packaged in protective tri-wall boxing. When specified, woode boxes and all export requirements can be provided.
DIN11850 Sanitary stainless steel tubing as well sanitary stainless steel tube, meets DIN11850 standards available in sanitary stainless steel AISI 316L, 304L or 304 from 1” to 4” sizes, inside roughness ( 32 μ'/0,8 μm ) Ra 180 grit; outside surface finishing ( 150 grit / Brushed ) acording to DIN11850. Upon Request Inside surface finishing ( 20 μ'/0,5 μm ) Ra. for DIN 11850 standards. To maintain clean standards tubes are packed individually in plastic sleeves and covered with plastic caps in both ends.
| Material | 304 (1.4301) or 304L (1.4307) 316L (1.4404) others on request |
| Dimensions DIN | DN10 - DN200 Series A and series B |
| Dimensions ISO | DN10 - DN200 Series C |
| Dimensions SMS and OD | 1" - 4" Series D |
| Inner surface | Outer surface | |
| CC |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled W2(b) and passivated |
| CD |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
| BC |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled and passivated or bright annealed W2A(b), W2R(b), l1g or l2g |
| BD |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
DIN 11850 Range 1 / 304L - 316L
| OUTSIDE DIAMETER (MM) | WALL- THICKNESS (MM) | NOMINAL OUTSIDE DIAMETER | NOMINAL WALL THICKNESS | DIMENSIONAL STANDARD |
|---|---|---|---|---|
| 12,00 | 1,00 | DN 10 | Range 1 | DIN 11850 Reihe 1 |
| 18,00 | 1,00 | DN 15 | Range 1 | DIN 11850 Reihe 1 |
| 22,00 | 1,00 | DN 20 | Range 1 | DIN 11850 Reihe 1 |
| 28,00 | 1,00 | DN 25 | Range 1 | DIN 11850 Reihe 1 |
| 34,00 | 1,00 | DN 32 | Range 1 | DIN 11850 Reihe 1 |
| 40,00 | 1,00 | DN 40 | Range 1 | DIN 11850 Reihe 1 |
| 52,00 | 1,00 | DN 50 | Range 1 | DIN 11850 Reihe 1 |
DIN 11850 Range 2 / 304L - 316L
| OUTSIDE DIAMETER (MM) | WALL- THICKNESS (MM) | NOMINAL OUTSIDE DIAMETER | NOMINAL WALL THICKNESS | DIMENSIONAL STANDARD |
|---|---|---|---|---|
| 13,00 | 1,50 | DN 10 | Range 2 | DIN 11850 Reihe 2 |
| 19,00 | 1,50 | DN 15 | Range 2 | DIN 11850 Reihe 2 |
| 23,00 | 1,50 | DN 20 | Range 2 | DIN 11850 Reihe 2 |
| 29,00 | 1,50 | DN 25 | Range 2 | DIN 11850 Reihe 2 |
| 35,00 | 1,50 | DN 32 | Range 2 | DIN 11850 Reihe 2 |
| 41,00 | 1,50 | DN 40 | Range 2 | DIN 11850 Reihe 2 |
| 53,00 | 1,50 | DN 50 | Range 2 | DIN 11850 Reihe 2 |
| 70,00 | 2,00 | DN 65 | Range 2 | DIN 11850 Reihe 2 |
| 85,00 | 2,00 | DN 80 | Range 2 | DIN 11850 Reihe 2 |
| 104,00 | 2,00 | DN 100 | Range 2 | DIN 11850 Reihe 2 |
| 129,00 | 2,00 | DN 125 | Range 2 | DIN 11850 Reihe 2 |
| 154,00 | 2,00 | DN 150 | Range 2 | DIN 11850 Reihe 2 |
| 204,00 | 2,00 | DN 200 | Range 2 | DIN 11850 Reihe 2 |
