316 food grade stainless steel tubing,Instrument Air Tubing Size 19.05x1.65MM

316 food grade stainless steel tubing,Instrument Air Tubing Size 19.05x1.65MM

Spezilla sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270 standards, and most user specifications.

Weld Bead:

Weld bead rolled of stainless steel sanitary pipe.

Straightness:

Maximum of 1.0 mm / metre

End finish :

Sizes to 203.2 deburred both ends

Finish Internal :

Inside bead rolled, mechanical polished.

Finish External :

As welded condition (external weld bead removed).

May have forming, straightening & weld polish cross hatch marking.

Standard Polished equivalent to 320 Grit - typical Ra = 0.5µm to 0.8 µm

Packaging:

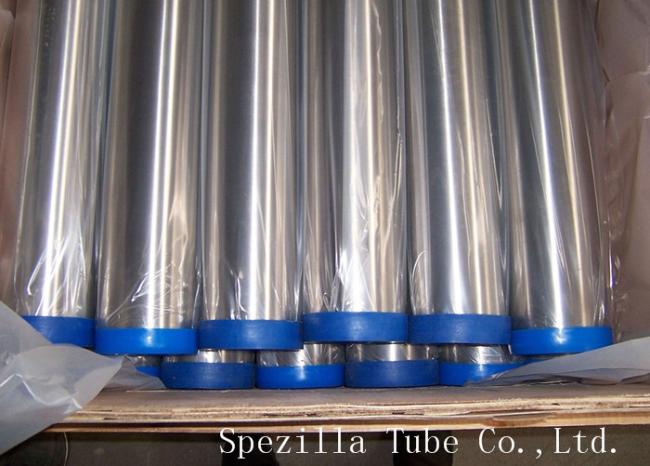

Polished Tube is individually plastic sleeved in a bundle with steel strapped cleats and plywood for forklift plate.

General Information:

ASTM A270 - Tubes for the food Industry

This specification applies to general tube and food / milk processing industry.

Available sizes :

Tube sizes range from 12.7 mm to 203.2 mm outside diameter.

Grades of Material :

304, 304L,316, 316L Stainless Steel

Our customers have come to rely on the quality of Spezilla’s sanitary tube products as well as our uncompromised commitment to total customer satisfaction. We stock all sanitary tube sizes from ½” to 6.0” OD in 20 ft. standard lengths. Custom lengths and sizes are available upon request. We stock:

• Type T304L adaptable for brazing or field welding
• Type T316L corrosion and heat resistant, adaptable for welding, brazing
