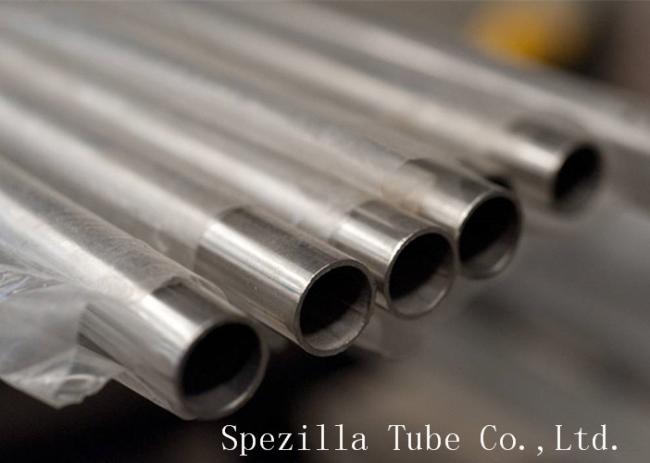

High Hardness 316 stainless steel tubing SF1 Polished Length 20ft
High Hardness 316 stainless steel tubing SF1 Polished Length 20ft
Available Sizes:
OD from 1/2'' to 8'' (12.7MM to 203.20MM)
Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)
Length: 20ft ( 6100MM)
Application:
Stainless steel sanitary tubing for use in dairy and food industries, pharmaceutical industry and other applications requiring special surface finishes.
Spezilla sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270 standards, and most user specifications.
General Information:
ASTM A270 - Tubes for the food Industry
This specification applies to general tube and food / milk processing industry.
Available sizes :
Tube sizes range from 12.7 mm to 203.2 mm outside diameter.
Grades of Material :
304, 304L,316, 316L Stainless Steel
Our customers have come to rely on the quality of Spezilla’s sanitary tube products as well as our uncompromised commitment to total customer satisfaction. We stock all sanitary tube sizes from ½” to 6.0” OD in 20 ft. standard lengths. Custom lengths and sizes are available upon request. We stock:
- Type T304L adaptable for brazing or field welding
- Type T316L corrosion and heat resistant, adaptable for welding, brazing
| erial | ASTM A270 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^ . | ^ |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ | ||
|
Size (TUBE O.D.) |
GAUGE | WALL | LBS/FT |
STOCK 304 |
STOCK 316L |
| 1/2 | 16 | .065 | .3020 | Y | Y |
| 3/4 | 16 | .065 | .4755 | Y | Y |
| 1 | 18 | .049 | .4980 | Y | Y |
| 1 | 16 | .065 | .6490 | Y | Y |
| 1-1/2 | 18 | .049 | .7593 | Y | Y |
| 1-1/2 | 16 | .065 | .9962 | Y | Y |
| 2 | 18 | .049 | 1.0210 | Y | Y |
| 2 | 16 | .065 | 1.3430 | Y | Y |
| 2 1/2 | 16 | .065 | 1.6900 | Y | Y |
| 3 | 16 | .065 | 2.0370 | Y | Y |
| 4 | 14 | .083 | 3.4720 | Y | Y |
| 6 | 12 | .109 | 6.9000 | Y | Y |
| 8 | 12 | .109 | 9.3000 | Y | Y |
| ASME BPE Stainless Steel Sanitary Tubing Surface Finish | ||
| Mechanically Polished Ra Max. | ||
| Surface Designation | u-inch | um |
| SF1 | 20 | 0.51 |
| SF2 | 25 | 0.64 |
| SF3 | 30 | 0.76 |
| Mechanically Polished & Electrpolished | ||
| SF4 | 15 | 0.38 |
| SF5 | 20 | 0.51 |
| SF6 | 25 | 0.64 |
