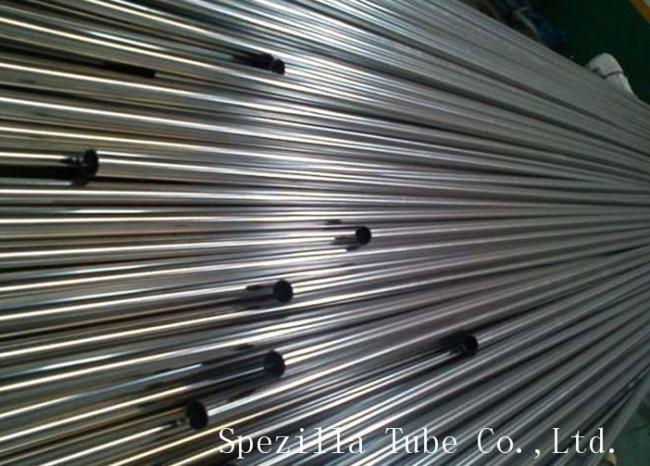

TP316 high pressure stainless steel tubing ,High Pressure Stainless Steel Tubing SF1 Polished
TP316 high pressure stainless steel tubing ,High Pressure Stainless Steel Tubing SF1 Polished
SPEZILLA is leading manufacturer & suppliers of stainless steel seamless and welded tubing manufactured as per ASTM A270 standards. It is certified to the requirements of ASTM A270 BPE standards, and most user specifications.Our customers have come to rely on the quality of Spezilla’s sanitary tube products as well as our uncompromised commitment to total customer satisfaction. We stock all sanitary tube sizes from ½” to 6.0” OD in 20 ft. standard lengths. Custom lengths and sizes are available upon request.
Available Sizes:
OD from 1/2'' to 8'' (12.7MM to 203.20MM)
Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)
Length: 20ft ( 6100MM)
Surface Polish:
Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.
Mechanical Tests Mechanical testing is in accordance with ASTM A450, which includes reverse bend, reverse flattening and flange tests. Eddy current tests are performed on 100% of the tube produced.
Surface Roughness: Bright Annealed, Mill Finish is available for both ID/OD, Mechanical Polish, Electro Polish needs to specify either ID/OD.
| Material | 304 (1.4301) or 304L (1.4307) 316L (1.4404) others on request |
| Dimensions DIN | DN10 - DN200 Series A and series B |
| Dimensions ISO | DN10 - DN200 Series C |
| Dimensions SMS and OD |
1" - 4" Series D |
| Inner surface | Outer surface | |
| CC |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled W2(b) and passivated |
| CD |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
| BC |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled and passivated or bright annealed W2A(b), W2R(b), l1g or l2g |
| BD |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
| ASME BPE Stainless Steel Sanitary Tubing Surface Finish | ||
| Mechanically Polished Ra Max. | ||
| Surface Designation | u-inch | um |
| SF1 | 20 | 0.51 |
| SF2 | 25 | 0.64 |
| SF3 | 30 | 0.76 |
| Mechanically Polished & Electrpolished | ||
| SF4 | 15 | 0.38 |
| SF5 | 20 | 0.51 |
| SF6 | 25 | 0.64 |
| Dimensional Tolerances ASTM A270 Stainless Steel Sanitary Pipe | ||||
| Size OD | Nominal Wall | Outside Diameter(MM) | Length | Wall |
| 1/2''(12.7) | 0.065''(1.65)/0.049''(1.25) | +/-0.005(0.13) | +1/8''(3.18)/-0 | +/-10.0% |
| 3/4''(19.05) | 0.065''(1.65)/0.049''(1.25) | +/-0.005(0.13) | +1/8''(3.18)/-0 | +/-10.0% |
| 1''(25.4) | 0.065''(1.65)/0.049''(1.25) | +/-0.005(0.13) | +1/8''(3.18)/-0 | +/-10.0% |
| 1-1/2''(38.1) | 0.065''(1.65)/0.049''(1.25) | +/-0.008(0.20) | +1/8''(3.18)/-0 | +/-10.0% |
| 2''(50.8) | 0.065''(1.65)/0.049''(1.25) | +/-0.008(0.20) | +1/8''(3.18)/-0 | +/-10.0% |
| 2-1/2''(63.5) | 0.065''(1.65) | +/-0.010(0.25) | +1/8''(3.18)/-0 | +/-10.0% |
| 3''(76.2) | 0.065''(1.65) | +/-0.010(0.25) | +1/8''(3.18)/-0 | +/-10.0% |
| 4''(101.6) | 0.083''(2.11) | +/-0.015(0.38) | +1/8''(3.18)/-0 | +/-10.0% |
| 6''(152.4) | 0.083''(2.11) | +/-0.030(0.76) | +3/16"(5.00)/-0 | +/-10.0% |
| 6''(152.4) | 0.109''(2.77) | +/-0.030(0.76) | +3/16"(5.00)/-0 | +/-10.0% |
| 8''(203.2) | 0.109''(2.77) | +/-0.050(1.25) | +3/16"(5.00)/-0 | +/-10.0% |
