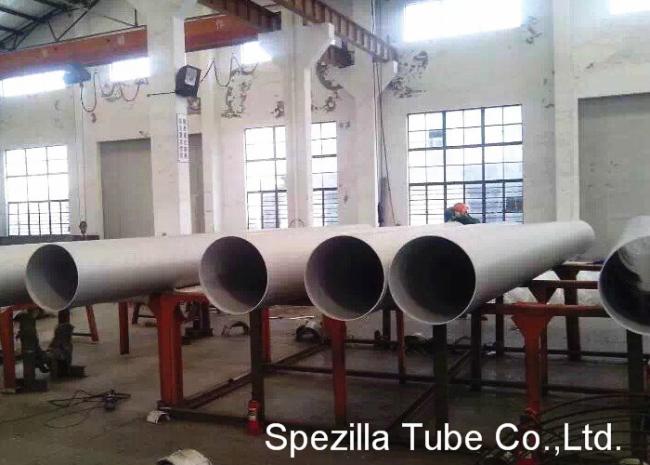

EN1.4541 Grade TP321 welded stainless steel tubes ANSI B36.10 ASTM A312​

Our Advantages:
1. High-quality products as per certificate ISO 9001
2. With competitive prices
3. Timely delivery for your orders.
4. SPEZILLA Learn the market well since we have in this industry for about 8 years.

This specification covers welded unannealed stainless pipe intended for low to moderate temperatures and corrosion service where heat treatment is not required for corrosion resistance. A312 is considered to be the most applicable specification for “as welded” pipe and differs from it only that a transverse guided bend test and a transverse tension test are required per lot.

Manufacture:

In order to comply with this specification welded stainless steel tube must be manufactured by an automatic welding process using no filler metal, or it must be a seamless pipe. If a welded stainless steel tube has a nominal pipe size greater than 14'' then it may be constructed from two longitudinal sections, and hence have two longitudinal welds. The pipe may be either hot finished or cold finished.

Finish and repair:

The surface of the welded stainless steel tube must be clean and free of scale and contaminating iron particles. It can be bright annealed but may be pickled, blasted or can be passivated.

Repair by welding. Permitted on <−20% of the weld seam length of welded stainless steel tube if >−NPS 6 and having a wall thickness >−0.200 in (mm). Tungsten-arc welding process is used for repairs, with filler metal to a grade as specified in A 312 (not repeated here). Weld repairs must be identified on the pipe and in test certificate.

Nominal Wall Thickness:
