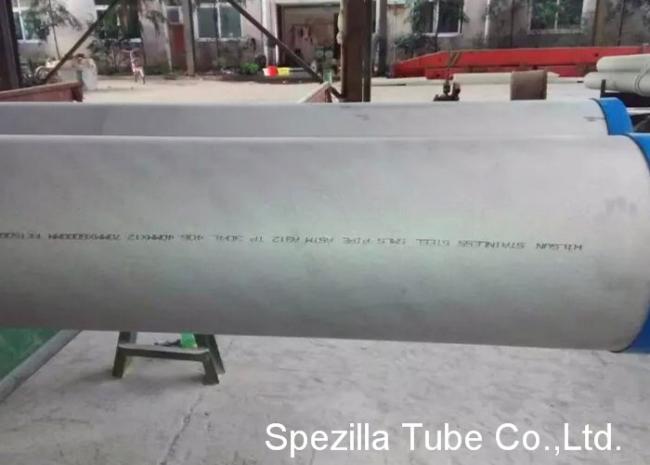

ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
SPEZILLA supplies welded pipe, per ASTM A 312, ASTM A 358 or as rolled and welded. We supply common grades of stainless such as 304/304L and 316/316L in standard pipe sizes and schedules including Sch 5, Sch 10, Sch 40s and Sch 80s. We also supply more challenging stainless welded pipe requirements including 304H, 316H, 309/S, 310/S, 317/L, 321/H, 347/H, 410, 410S, Duplex 2205, Duplex 2507 and many other grades of stainless, duplex or nickel alloys.
We can even supply material with wall thicknesses up to 3″ thick! Diameters sizes range from 1/8″ up to 96″. We specialize in quick delivery of non-standard welded pipe. We recently supplied a steel mill with 3 pieces of 11-1/2″ OD x .625″ Wall x 13’ Type 316/316L and delivered the product in 5 days to meet a shut-down requirement. All welded pipe products can be cut to size. Specialty testing, including X-ray, Hydro Testing and more can be supplied upon request.
|
NPS Designator |
Outside Diameter in. |
Schedule 5S in. |
Schedule 10S in. |
Schedule 40S in. |
Schedule 80S in. |
|---|---|---|---|---|---|
| 1/4 | 0.540 | 0.065 | 0.088 | 0.119 | |
| 3/8 | 0.675 | 0.065 | 0.091 | 0.126 | |
| 1/2 | 0.840 | 0.065 | 0.083 | 0.109 | 0.147 |
| 3/4 | 1.050 | 0.065 | 0.083 | 0.113 | 0.154 |
| 1.0 | 1.315 | 0.065 | 0.109 | 0.133 | 0.179 |
| 1 1/4 | 1.660 | 0.065 | 0.109 | 0.140 | 0.191 |
| 1 1/2 | 1.900 | 0.065 | 0.109 | 0.145 | 0.200 |
| 2 | 2.375 | 0.065 | 0.109 | 0.154 | 0.218 |
| 2 1/2 | 2.875 | 0.083 | 0.120 | 0.203 | 0.276 |
| 3 | 3.500 | 0.083 | 0.120 | 0.216 | 0.300 |
| 3 1/2 | 4.000 | 0.083 | 0.120 | 0.226 | 0.318 |
| 4 | 4.500 | 0.083 | 0.120 | 0.237 | 0.337 |
| 5 | 5.563 | 0.109 | 0.134 | 0.258 | 0.375 |
| 6 | 6.625 | 0.109 | 0.134 | 0.280 | 0.432 |
| 8 | 8.625 | 0.109 | 0.148 | 0.322 | 0.500 |
| 10 | 10.750 | 0.134 | 0.165 | 0.365 | 0.500 |
| 12 | 12.750 | 0.156 | 0.180 | 0.375 |
0.500 |
Processing for Stainless Steel Welded Pipe
|
Long Product Processing Services Overview |
|
|---|---|
|
Bar & Structural Cutting |
Products cut include Round Bar, Flat bar, Hex bar, Square bar, Tubing and Hollow Bar, Pipe, Angles, channels, Beams and Tees. Thickness range is 1/16″ to 28″ diameter |
|
Production Cutting |
Penn Stainless can provide production cutting for product diameters up to 4″. We utilize Amanda Production Equipment to achieve these precision cuts with tight tolerances. |
|
Pipe Threading |
Available thru 2″ in Diameter/All schedules |
|
Tubular Polishing |
Products polished included all tubular products, with OD & ID polishing available, Round Bar, Square Bar, Hex & Flat bar, Angles, Uneven Leg Angles, beams, and other shapes. |
Welded Stainless Steel Pipe Tolerances
|
NPS Designator |
Permissible Variations in Outside Diameter |
|
|---|---|---|
|
Over In. |
Under In. |
|
|
1/8 to 1-1/2, incl |
1/64 (0.015) |
1/32 (0.031) |
|
Over 1-1/2 to 4, incl |
1/32 (0.031) |
1/32 (0.031) |
|
Over 4 to 8, incl |
1/16 (0.062) |
1/32 (0.031) |
|
Over 8 to 18, incl |
3/23 (0.093) |
1/32 (0.031) |
