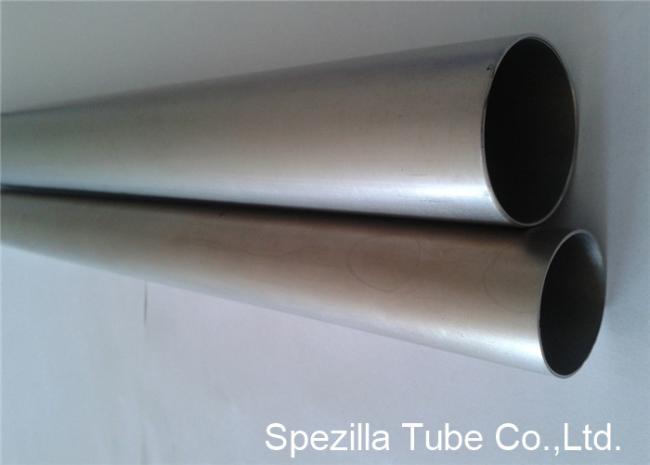

Durable Grade 2 Welded Titanium Tubing Cold Drawn 25.4mm X 0.889mm X 7.5 Mtr
Grade 2 Titanium Tube / Gr. 2 Seamless Titanium Tubing 25.4MM X 0.889MM X 7.5 MTR.
Titanium grade 2 is a commercially pure titanium and the most commonly used type of titanium for industrial applications. The alloy is used primarily for its corrosion resistance to pitting, crevice and cavitations corrosion, erosion and stress corrosion cracking in salt water, and a broad range of acids, alkalis and industrial chemicals. Titanium is a low density material with a high strength to weight ratio.
Titanium Grade 2
Wst. 3.7035
UNS R50400
Titanium Grade 2 is a pure titanium offering an excellent balance of strength and ductility. The material has good toughness and is readily weldable. It is corrosion resistant in highly oxidizing and middly reducing environments, castable and often utilized in cast valves and fittings.
Characteristics:
Excellent resistant to oxidizing or mildly reducing media
Good impact properties at low temperatures
Very good resistance to corrosion and erosion by seawater and marine atmospheres
Good ductility and formability
Easy weld ability
Market applications:
Petrochemical
Aerospace
Medical equipment
Oil and gas
Seawater equipment
| NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|
| 1/8″ |  |
|
|
|
|
| 1/4″ | |
|
|
|
|
| 3/8″ | |
|
|
|
|
| 1/2″ | |
|
|
|
|
| 3/4″ | |
|
|
|
|
| 1″ | |
|
|
|
|
| 1 1/4″ | |
|
|
|
|
| 1 1/2″ | |
|
|
|
|
| 2″ | |
|
|
|
|
| 2 1/2″ | |
|
|
|
|
| 3″ | |
|
|
|
|
| 4″ | |
|
|
|
|
| 5″ | |
|
|
|
|
| 6″ | |
|
|
|
Chemical Composition:
| Titanium Gr 2 | |
| Ti | 99.2 min |
| C | 0.1 max |
| Fe | 0.3 max |
| H | 0.015 max |
| N | 0.03 max |
| O | 0.25 max |
Mechanical & Physical Properties:
| Density | 4.5 g/cm3 |
| Melting Point | 1665 °C (3030 °F) |
| Tensile Strength | Psi – 49900 , MPa – 344 |
| Yield Strength (0.2%Offset) | Psi – 39900 , MPa – 275 |
| Elongation | 20 % |
Specifications:
| Bars: | ASTM B 348, ASTM F 67, ISO 5832-2 |
| Sheets/Plates: | ASTM B 265 |
| Pipes/Tubes: | ASTM B 338, ASTM B 861 oder ASTM B 862 |
Technical details:
| Technical composition (%) | Fe | N | C | Ti | O | H | |
|---|---|---|---|---|---|---|---|
| Titanium Grade II | min | - | - | - | 99.2 | - | - |
| max | 0.30 | 0.03 | 0.100 | - | 0.25 | 0.015 | |
| Mechanical properties | Titanium Grade II |
|---|---|
| Tensile strenght (mpa, min) | 485 |
| Yield strength (0.2% offset mpa, min) | 345 |
| Elongation (%, min) | 28 |
| Density / weight (g / cm3 / kg) | 4.51 |
